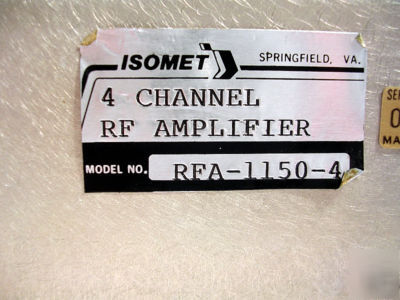

New isomet 4 channel rf amplifier rfa-1150-4

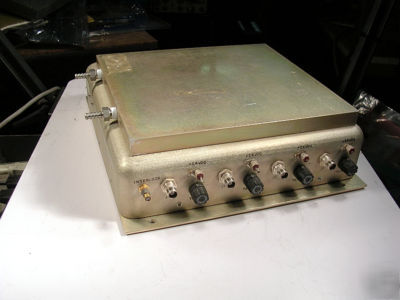

The Model RFA1150 amplifier is a class A solid-state unit designed to drive various Acousto-Optic devices manufactured by Isomet with up to 50W of power in the 30 to 95MHz frequency band. The amplifier, supplied as a module and requiring +24V regulated power supply for operation, exhibits a nominal gain of 57dB.
Power out : 50 Watts CW into 50 Frequency response : 50 - 90 MHz Flatness: +/- 1dB Gain: 57dB nominal
Input impedance: 50 Nominal Output impedance : 50 Nominal Input VSWR: < 2.0:1 Harmonic Distortion : > 20 dB below fundamental at 40W output
> 15 dB below fundamental at 50W output
FOR FULL SPEC AND MORE INFO PLEASE GO TO : /FinalWebSite/PDFDocs/.../RFA1150.pdf
LET US KNOW IF YOU HAVE ANY QUESTIONS. WE OFFER A DOMESTIC DOA WARRANTY. THANKS FOR LOOKING
A COPY OF THE TEST DATA IS INCLUDED
