Contec ecg/ekg workstation 12-lead with interpretation

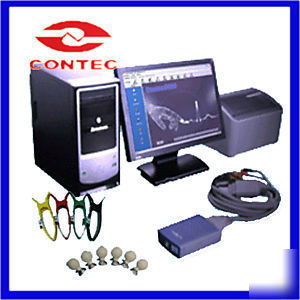

CONTEC 8000A ECG-workstation (The pc isn't included)
12-lead Resting PC-ECG System ( with Automatic Diagnosing Analysis Function)
ECG: 12-lead resting PC-ECG with auto interpretation
VCG: Vector-cardiograph with auto interpretation
TVCG: Timed Vector-cardiograph
FCG: Frequency ECG (unique technique to detect ischemia and CAD)
SAECG(VLP): Signal Averaged ECG or Ventricular Late Potentials, time domain and 3-D frequency domain)
QTD: QT Dispersion with chroma map
HRV: Heart Rate Variability (time domain, 3-D frequency domain, Lorenz poincare plots
PMECG: Pacemaker ECG analysis
High sampling rate of 1000Hz
Applying anti-baseline-drift technology ensuring the stability of ECG baseline
Wilson and Frank hookup system
Meet the international standard of IEC60601-1
Easy operation and perfect printout
Diagnosis of coronary heart disease
Perfect time domain, frequency domain and non-linear HRV analysis
Perfect ECG database management system
Sample rate: 1000Hz, simultaneous 12 leads recording
Patient Insulation: 4000V AC
Defibrillation Protection: Built-in box
Frequency response: 0.05-250 Hz
Common mode rejection: >90dB
Max electrode potential: 300mV DC
Patient cable: standard 10-wire, 15-pin D connection
