> Pitco SG14S fryer, heavy duty, 40-50 lbs. oil capacity

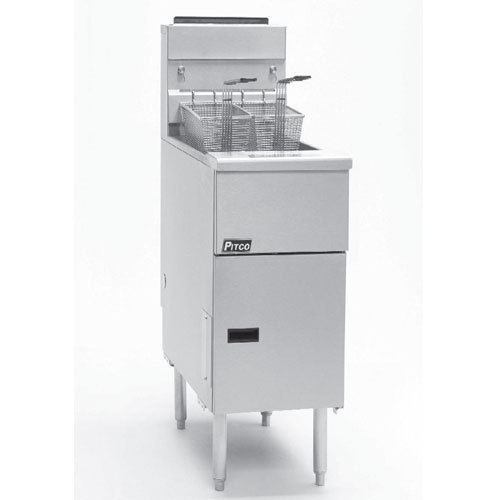

Pitco SG14S fryer, heavy duty, 40-50 lbs. oil capacity
Fryer, Heavy Duty, 40-50 Lbs. Oil Capacity, Gas, Millivolt Thermostat, 110,000 BTU, Stainless Steel Tank, Solstice Series
One year limited parts and labor warranty (USA only) -view pdf
2 nickel-plated oblong wire mesh baskets
* Fries a wide variety of foods in a limited amount of space - cooks 88 lbs. of fries per hour
* Frying area 14" x 14" x 4"
* Welded tank with an extra smooth peened finish ensures easy cleaning
* Long-lasting, high-temperature alloy stainless steel heat baffles are mounted in the heat exchanger tubes to provide maximum heating and combustion efficiency
* Standing pilot light design provides a ready flame when heat is required
* Cabinet front, door, and splashback are constructed of stainless steel with galvanized sides and back
* Thermostat maintains selected temperature automatically between 200F (93C) and 400F (190C).
* Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator, and automatic main valve
* Gas control valve prevents gas flow to the main burner until pilot is established and shuts off all gas flow automatically if the pilot flame goes out
* Temperature limit switch safely shuts off all gas flow if the fryer temperature exceeds the upper limit
* New Solstice burner/baffle design increases cooking production, lowers flue temperature, generates more production per BTU compared to previous models
* Standard Accessories: 1) 2 nickel plated, oblong, wire mesh baskets 2) One nickel-plated tube rack 3) One drain extension 4) One drain line clean-out rod 5) Fryer cleaner sample 6) Rear gas connection 7) Manual gas shutoff 8) 1 1/4" (3.2 cm) full port drain valve 9) Built-in integrated flue deflector 10) Removable basket hanger for easy cleaning 11) 9"(22.9 cm) adjustable legs 12) Cabinet - stainless steel front, door, and sides 13) tank, stainless steel
* Manufacturer: Pitco Frialator
