Hp/ agilent 8565EC spectrum analyzer

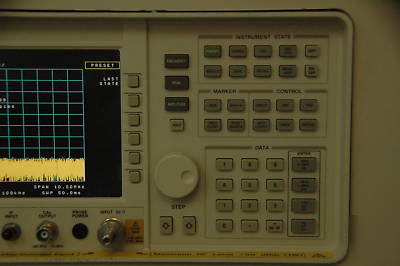

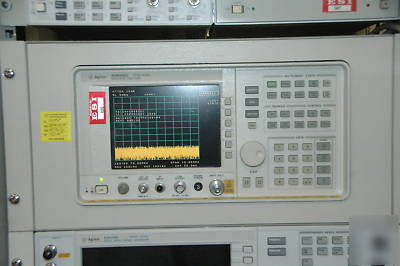

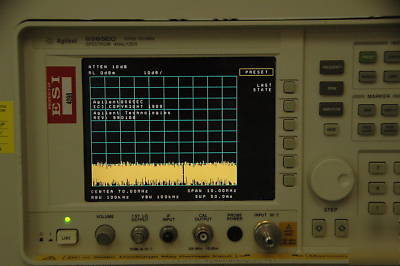

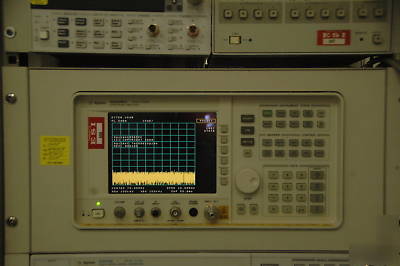

HP / Agilent 8565EC Portable Spectrum Analyzer
The HP / Agilent 8565EC portable, color display millimeter wave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. You can measure signals from 30 Hz to 50 GHz (preselected above 2.75 GHz) with a single coaxial connection.
The HP / Agilent 8565EC spectrum analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.
* Outstanding performance for sensitivity, phase noise, the 2nd and 3rd order dynamic range, and the voltage standing wave ratio (VSWR)
* Continuous 30 Hz to 50 GHz sweep
* MIL-PRF-28800 Class 3 rugged
