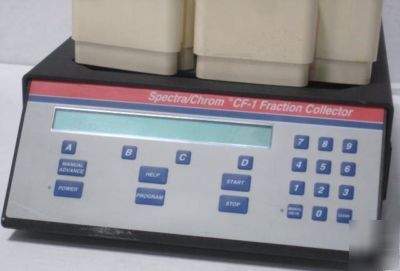

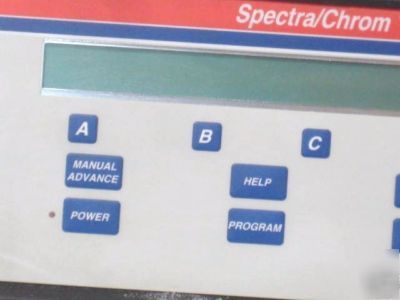

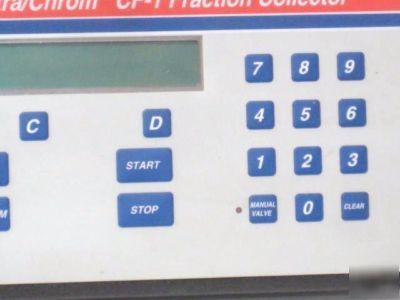

Spectrum chroma spectra/chrom cf-1 fraction collector
This listing is for a fraction collector. Please note that the power supply is not included.
* Make: Spectrum Chromatography
* Model / Part #: CF-1 (CF1)
* List Price: Approximately $2340
* Description: Fraction Collector
* Please note that the power supply is not included.

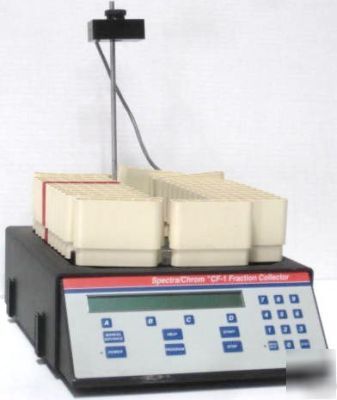

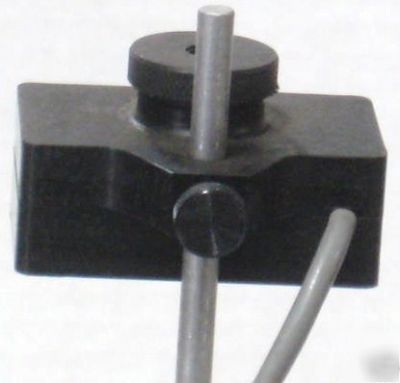

The Spectra/Chrom CF-1 Fraction Collector is a durable, general purpose, fraction collector. It can collect up to 174 fractions in 12 to 13 mm diameter tubes. The fraction collector is sold complete with a set of racks for holding 12 to 13 mm diameter tubes, a drop counter and former, and tubing fittings for 1/16 and 1/8 inch OD tubing and 1/16 inch ID tubing. It is used in both preparative hplc and low pressure chromatographic separations.
A variety of options are available for the CF-1 Fraction Collector which expand its versatility. These options include racks for other tube sizes, security and diverter valves, and cables to permit automated operation.
Use part number 124845 ($2343.00) for a 115V version of the fraction collector and 124846 ($2533.00) for a 230V version.
Special Features of the CF-1 Include:
* Collects up to 174 fractions
* Tube sizes from 10 to 28 mm diameter
The manual for the CF-1 fraction collector is available on-line in PDF format. Click here to view the manual (1080 kb). You will need Adobe Acrobat reader to view the manual. If you do not already have one, a free copy of this software is available here.
A similar device called an Interval Sampler is also available. An interval sampler is used to periodically sample a liquid stream or container.
* Dimensions: 28 cm x 12 cm x 40 cm / 11 x 4.5 x 16 inch
* Collection Basis: 6 sec to 999 min and 59 sec in 1 sec increments, 1 drop or volume to 9999 drops or volumes in 1 drop or volume increments.
* Tube Change Time: 0.35 sec maximum within 12/13 mm rack

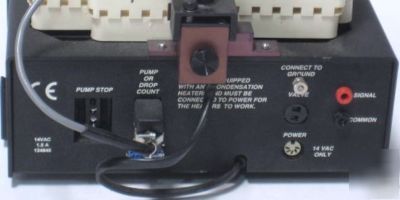

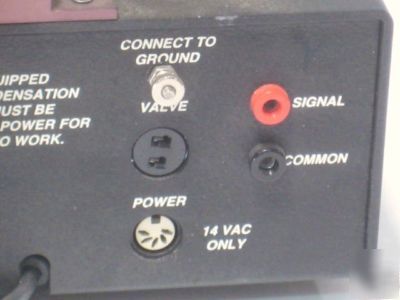

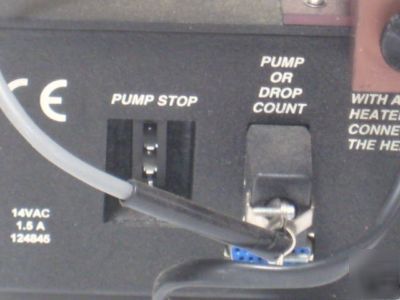

* Event Mark Output: Open collector outputs, 1 for tube change, 1 for rack change.

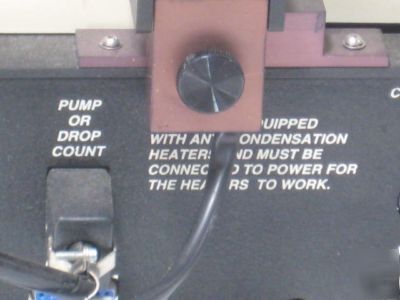

* Count Input: TTL low or contact closure for 1 ms to 1 s, or drop counter. Maximum count rate is 5 per second.

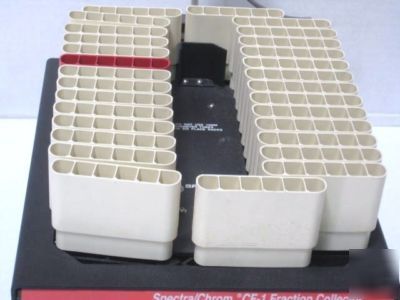

* Tube Capacity: 174 12 or 13 mm tubes / 116 10 to 16 mm tubes / 116 18 mm tubes or vials / 42 28 mm tubes or vials
* Operating Temperature: 0 C to 40 C, noncondensing
This is used and in good condition. Please note that the power supply is not included. Guaranteed to be in proper working order.
