New fadal inv-0093, inv-0096, inv-0056 (all ht invs)


From VMC Electric, LLC - All Fadal Spindle Drives - Standard, High and Very High Torque
New 2010 BALDOR Digital Spindle Drives
One Drive - All These Features:
The same superior performance and reliability of the original H-Series drive that was first introduced back in the 80's but now even better!
BALDOR s new H2 Vector Drive provides the ultimate control of AC induction motors through the latest DSP technology.
* Baldor is the number one Spindle Drive for Fadal Machines: well over 20,000 units installed, 20+ years old and still running in their original Fadal machines!
* New Digital Signal Processor (DSP) for the ultimate smooth motor control in both Vector and Inverter modes!
* Smart Diagnostics with service HELP built into the drive!
* TWO YEAR WARRANTY from us and Backed By BALDOR.
1 - The Smartest Drive Available!
These drives are by far the best for diagnosing a Spindle drive system. It's not just a "dumb drive" that leaves everyone guessing at the problem! It has many features that will help you trouble shoot, not only the drive itself, but also the spindle motor, the encoder and the CNC control I/O signals.
Here's a few examples to show how helpful this drive really is:
Internal Fault Log - retains the last 10 fault conditions. What makes it even better is that it stores exactly what the drive was doing at the time of the fault, with information such as Date and Time, I/O conditions, motor current, actual speed, commanded speed. These are extremely helpful to the service personnel in solving a problem, rather than relying on the operators observations.
For example, the Fault Log stores many common system failure conditions such as:
Encoder faults if the encoder was beginning to fail.
Phase Loss messages if there was a power input problem.
DC High messages occurs when the braking resistors begins to fail.
Line Sag messages indicates a low input voltage condition.
Retaining an accurate history of the failures is a tremendous diagnostic tool, not just for the drive itself but for all the issues that can make the drive look bad when it's actually something else.
Diagnostics - allows access to all critical information while the spindle motor is running. It is features like these that help determine the real problem and avoid replacing a "good drive".
Smart Keypad - used to retain a backup copy of the parameters. You can easily save and restore parameters from the drive memory to the keypad memory.
Built In HELP Function - at any fault, simply press the HELP key and the drive will display recommended corrective action(s). Another feature that servicemen have found extremely helpful.
2 - Total Engineering Support!
With us you're not just getting a "Part In A Box"! You get Total Support, starting with simple step by step instructions on how to install and get your new drive up and running. The total time usually takes less than an hour; certainly much easier and less time than any other drive.
How can we say this? We are commonly told this by those experienced with installing those other drives!
The fact is, with our Fadal engineering knowledge and our direct interaction with Baldor engineers, you're getting the absolute best product support possible at installation and beyond.

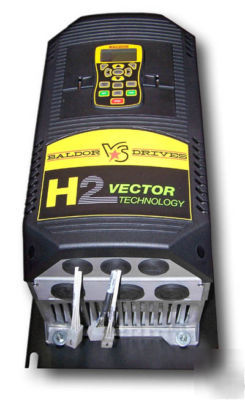

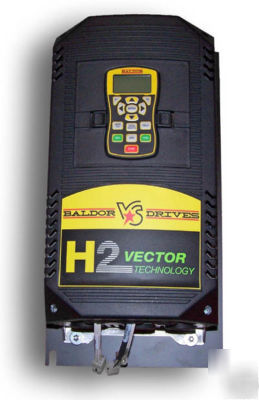

Model: BALDOR H2 Vector Digital Drive
15 HP Continuous / 26.25 HP Peak
230 Volt AC Input; Single or Three Phase
Replaces the following INV part numbers:
Directly interchangeable with all Fadal HT machines, except models using Fanuc and Siemens controls.
Our drive package is truly a "Plug-n-Play" installation, it comes with mounting plate, Molex interface cables, installation instructions and technical phone support.
Beware of Discontinued Baldor Inverters Sold as New Drives or Remanufactured:Old Discontinued Baldor Drives
There are those selling the original, discontinued BALDOR H-series drives as "New" but these are really just remnants of old production runs; old technology and they do not have new service parts available (see below).
In 2004 Baldor stopped making the old H-series drives after 20 years of production because of the availability of components.
The fact is Baldor doesn't offer Remanufactured units, there are other companies repairing them and calling them REMANS but they are not true remanufactured drives by Baldor.
If it doesn't look like the H2 Drive, it's not a new Baldor Inverter/Vector drive!
The only "New Baldor" is the H2 Vector Drive, configured for Fadal VMCs exclusively by us and only available from us and selected Fadal Dealers!
True Knowledge and Experience you can Trust!
VMC Electric was started by one of the original family members of Fadal Engineering. Directly responsible for the Fadal Control; Software and Hardware - in design, development and production of the Fadal machines.
Below is just a few examples of our engineering experience.
Fadal Spindle Drive System Development:
- Worked with Sewo to develop (pioneer) Vector Control Technology
- Extensive Experience in Spindle Dyno Testing
- Designed and Developed the Rigid Tap feature
- Designed and Developed the Tool Load Compensation feature
- Directly involved in testing, tuning and commission of the following Fadal spindle drives:
- Designed and Developed the New Baldor H2 Vector Interface
That's what we mean by True Knowledge and Experience...
We are the ones to call! Why? - Because we designed it all from the beginning!
Simply call Toll Free 1-(***)-765-9838 or click "Ask Seller A Question" for any questions you might have.
I can tell you first hand since I was there for the commissioning of all of them, from the beginning. In fact, back in the late 80's, we at Fadal were repairing the spindle drives returned from the service department.
Historically there have been seven drives, below a list in order of commission:
LoveJoy, Toshiba, Mitsubishi, Sewo, BALDOR, AMC and Yaskawa
Answer - There are many issues/costs to consider with the Rebuilt or Repair solution:
* New Drive? - There are those selling the discontinued BALDOR H-series drives as New replacements but these are really just remnants of old productions and do not have new service parts available.
* Remans? - Many call parts "remanufactured" when in actually they are just bench repaired in-house with used parts. Typically they are used "Core Returns" that are not returned to the original manufacture for rebuilding and revision updates.
Quality Repairs? - Do the research and you'll find out that no one except the original manufactures have electrical schematics to work from, repair shops are left to just guess at what's wrong with the inverter, swap out old boards and components until it works.
* Availability of Parts - BALDOR stopped making the older, original BALDOR H Series Drive and replacement parts approximately 6 years ago mostly because of component availability and technology advancements. Repair shops are now left with older, used boards and only a board swapping method to repair a drive.
* Obsolesces - Most OEMs have limits on factory repairs based on age, components and design revisions.
* Warranty - Drive repairs typically only warranty the parts they replace. When the drive fails again, you could be looking at the same repair costs and down time.
* Age - Some of these drives are just "old and wore", they work by switching 350 VDC to create a PWM AC voltage and after time, the stress of switching 11 KWs at 3k Hz takes it's toll on all components. You can see the date of manufacture by looking at the serial numbers, most drives have it encoded.
* Cost - Why keep investing money in an old style drive when we offer a new, 2009 H-2 Digital Spindle Drive with a Two Year Warranty?
We are confident our New BALDOR H-2 Digital Spindle Drive package will be your best choice.
- Easiest to install, Best Warranty Support, Best Performance at the Best Price!
