MC100EL1648, voltage controlled oscillator ecl, qty 5

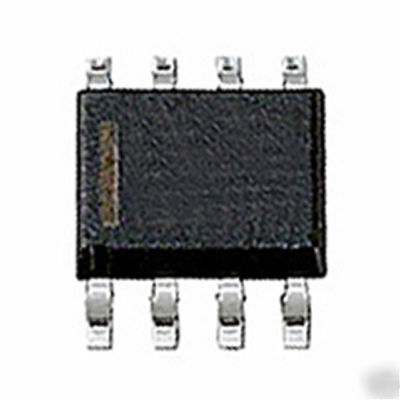

MC100EL1648DG, 5V ECL Voltage Controlled Oscillator, 8 Pin SOIC, Lead-Free, Quantity 5, ON Semiconductor.
The MC100EL1648 is ideal in applications requiring a local oscillator. Systems include electronic test equipment and digital high-speed telecommunications. This device may also be used in many other applications requiring a fixed frequency clock.
The MC100EL1648 requires an external parallel tank circuit consisting of the inductor (L) and capacitor (C). A varactor diode may be incorporated into the tank circuit to provide a voltage variable input for the oscillator (VCO).
* Typical Operating Frequency Up to 1100 MHz
* Low-Power 19 mA at 5.0 Vdc Power Supply
* Phase Noise -90 dBc/Hz at 25 kHz Typical
* ESD Protection: >2 KV HBM, >100 V MM
* PECL Mode Operating Range: VCC= 5.0 V with VEE= 0 V
* NECL Mode Operating Range: VCC= 0 V with VEE= -5.2 V
* Input Capacitance= 6.0 pF (TYP)
