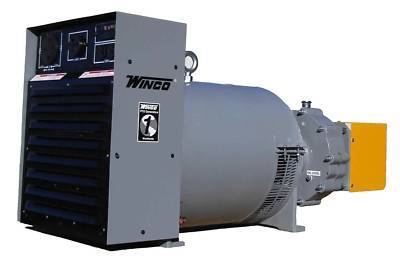

Generator - pto powered - 35 kw - 35,000 watts
35 kW (35,000 Watts) - 120/240V - Single Phase - Heavy Duty all Steel Housing
* Heavy Duty Winco 35,000 Watt (35 kW) - 120/240V - Single Phase - PTO Driven Generator
* This powerful Generator packs 35 kW (35,000 Watts) of Power
* We offer PTO generators in sizes ranging from 7.2 kW through 150 kW with either 540 RPM or 1000 RPM gear cases (available on most models).
* Winco PTO generators are a cost effective way of providing 120/240V single phase standby power when commercial power is interrupted, inaccessible or impractical.
* Power Rating: 35,000 Watts / 35 kW
* A/C Output Voltage: 120/240V
* Generator Speed: 1,800 RPM
* Receptacles: 1 Each: NEMA 5-20R 120V Duplex - 1-20 Amp / 1 Each NEMA 6-50R 240V - 1-60 Amp
* Full Power Receptacle: Yes
* Tractor Hp Required: 70 Hp
* PTO Input Speed: 540 RPM (1,000 RPM Optional - please inquire)
* Low harmonic distortion (less than 8%)
* Mainline circuit breakers protect load and generator
* Color coded voltmeter for PTO/RPM adjustment and to verify proper operation
* Heavy duty cast iron gear case with standard 1-3/8" six spline, standard 540 RPM input shaft
* Optional Item: Model VIR543261 - PTO Drive Shaft (Tumbling Bar) - Please Inquire
* Optional Item: Model VIR97100 - Trailer Kit - Please Inquire
* Manual Transfer Switches Available
* Overall Dimensions: 36.6" L x 19.8" W x 21" H
* 3 Year Warranty (Includes Parts & Labor)
