Win systems mcm-1260 lpm-1280 400-0047-000 bus analog

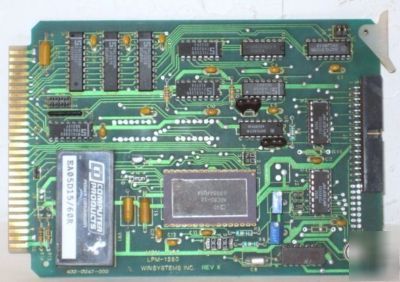

This listing is for a replacement PCB (circuit board).
* Make: Win Systems (WinSystems)
* Model / Part # 1: MCM-1260 (MCM1260)
* Model / Part # 2: LPM-1280 (LPM1280)
* Model / Part # 3: 400-0047-000 (4000047-000) (400-0047000) (4000047000)
* Description: PCB, CMOS STD bus 12-bit Analog Input Board
* Any combination of up to 16 single-ended input channels and up to 8 differential input channels
* User configurable gains of 1 to 1000
* Throughput to 13,333 channels per second
* Interrupt on conversion complete
* Jumper selectable I/O addressing
* Industrial Operating Temperature Range 0 C to 60 C
* Power +5V required, 400 mA typical
The MCM-A/D12 and MCM-1260 boards provide 8 differential or 16 single-ended, 12-bit analog input channels with a throughput of up to 13,333 channels per second. User programmable gains from 1 to 1000 allow effective input ranges from 10 mV to 10V. Installation of an optional DC/DC converter makes the board require +5V only.
WinSystems reserves the right to make changes to products and/or documentation without further notification. Product names of other companies may be trademarks of their respective companies.
Win Systems' product page is located at http:// /products/LPM-1260.cfm
