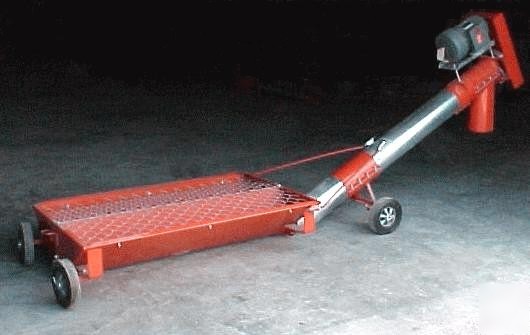

Self powered swing hopper 6 inch to 8' incline auger
Self Powered Swing Hopper 6 inch to 8' incline auger Incline auger has 25 degree angle from horizontal hopper auger
* 6" To 8" Has 6" Screw In Hopper With 25 Degree Joint To 8" Riser. Capacity Up To 1500 Bushels per hour BPH.
* Horizontal Length Is 9' Measured From Center Of Hopper To Center Of Discharge.
* Hopper Is 3' x 5' x 13' Tall.
* Each Additional Foot Of Riser Length * Adds 5" To Discharge Height.
* Included 2 Rubber Tires At End Of Hopper.
* Optional Tube support with tires located between the hopper and the discharge is not included
* Includes the 8" auger head with auger pulley, bearing and quick disconnect motor mount
* QUICK DISCONNECT Jet-a-Mount MOTOR MOUNT IS REALLY SLICK. Once a motor is installed and the belts properly tightened, simply push down on the back of the motor, remove a pin from the motor base plate, lift up the back of the motor, remove the belt from the motor pulley and move the motor to the next auger or location.
* Galvanized Jet-a-Mount motor mount is great for easy removal for putting motor in a storage building to get it out of the weather or a more secure location for more theft protection. (also available separately)
* Does not include Motor or motor pulley also available from us in a Baldor electric motor or Worldwide Electric motor brand
* Requires a minimum 3 hp electric motor and 3.5" motor sheave is recommended
* We stock a large selection of cast iron motor pulleys and sheaves in fixed bore and taper locks
* Capacity 1500 bu per hour or about 1750 cu ft per hour
* Capacities are rated on grain such as corn, wheat or soybeans.
* Will also auger or convey some other products also like feed and pellets and products with similar consistencies.
* Freight is usually about $110 to a business location with posted hours and a forklift, if you are not in a remote location. It is higher in remote locations like southern Florida, and to some of the northwest states.
* Call us with any questions or for a quick freight quote at (***) 283 7107 or (***) 682 5551 or
* email us at ****@hayspear.com 24/7
* Bulk feed tank and many other augers.
