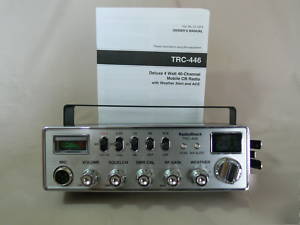

Radioshack 4 watt 40 channel trc-446 tx/rx wx/alert ace
This is a working used radio, I powered it up with a whip antenna & my power supply and it works. This unit is unused but not the full box , with instructions.
TRC-446 Deluxe 4 Watt 40-Chan. Mobile CB Radio (210-1574)
Specifications from Radioshack's site
Channels: .................................................... 40 Channels
Frequency Range: .................................... 26.965 to 27.405 MHz
Power Requirements: ........... 13.8 VDC (12-16 Volts DC, Negative Ground)
Dimensions (HWD): ....... 2-1/4 x 7-1/4 x 7-7/8 Inches (57 x 184 x 200 mm)
Weight: ................................................. 3.1 lbs (1.4 kg)
Sensitivity: .......................... 0.5 uV or better for 10 dB (S+N)/N
Adjacent Channel Rejection: ............................ 50 dB (at 10 kHz)
Audio Output: ........................................ 4.5 Watts (Maximum)
Frequency Response: ........................................ 450 - 2500 Hz
Intermediate Frequency (1st IF): .............................. 10.695 MHz
(2nd IF): ................................. 455 kHz
Cross Modulation: .................................................. 50 dB
Squelch: .................................. Adjustable from 0.5 uV to 1 mV
Output Power: ...................................... 4 Watts (FCC Maximum)
Type of Modulation: .......... AM Double-Sideband, Full Carrier Modulation
Modulation Capability: ........................................... +/- 90%
Spurious Emission: ...................................... Less than -70 dB
Frequency Tolerance: .......................................... +/- 200 Hz
Antenna Impedance: ................................................ 50 Ohm
Current Drain: ............... (13.8-volt supply) 1 Amp with No Modulation
Output Power: ........................................ 4.2 Watts (Maximum)
Current Drain (at maximum power): ............................. 1.2 Amps
Frequency Coverage (MHz): ........................................ 162.400
