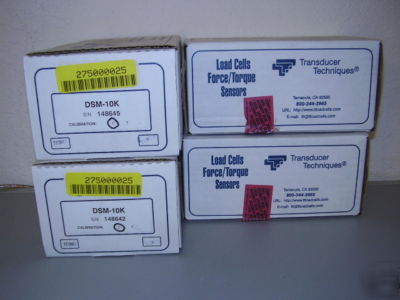

New transducer techniques dual stud load cell dsm-10K
CAPACITY: 10,000 LBS - CALIBRATION IN COMPRESSION - P/N: DSM-10K, S/N: 148644
THIS DSM SERIES DUAL STUD MOUNT LOAD CELL IS SUPPLIED WITH A STUD AT EACH END FOR EASY IN LINE MOUNTING, UP TO 10,000 LBS. THIS LOAD CELL IS HIGHLY ACCURATE AND IS MANUFACTURED FROM HEAT TREATED 17-4PH STAINLESS STEEL. THE SENSING ELEMENT INCORPORATES BONDED FOIL STRAIN GAGES OF THE HIGHEST QUALITY, AND ARE SEALED FOR PROTECTION AGAINST MOST INDUSTRIAL ENVIRONMENTS.
* RATED OUTPUT (R.O.): 2 mV/V NOMINAL
* NONLINEARITY: 0.15% OF R.O.
* NONREPEATABILITY: 0.05% OF R.O.
* ZERO BALANCE: 1.0% OF R.O.
* COMPENSATED TEMP. RANGE: 60 TO 160 F
* SAFE TEMP. RANGE: -65 TO 200 F
* TERMINAL RESISTANCE: 350 OHMS NOMINAL
* EXCITATION VOLTAGE: 10 VDC
* SAFE OVERLOAD: 150% OF R.O.
* CALIBRATION INCLUDED: COMPRESSION
