New port sl series gimbal optical mount SL25.4BM SL25

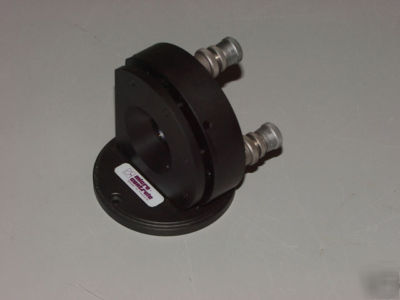

NEWPORT SL SERIES GIMBAL OPTICAL MOUNT SL25.4BM
SL Series Optical Mounts are true gimbal mounts for high-resolution azimuth and elevation adjustment of mirrors and beamsplitters. The fixed rotational axes intersect at the front surface of the optic, allowing simple, non-coupled rotation without translation. The gimbal design also greatly reduces beam wander and optical path-length changes. These mounts are designed for maximum clear aperture of the transmitted beam at a 45 incident angle.
SL Mounts are designed for a single nominal optical diameter for positive, made-to-fit three-point mounting inside the gimbal body. For general applications, BM Micrometer drives supply graduated settings for repeatable positioning.
This unit includes two (2) BM micrometers.
