> Fuji sw-05/2L heavy duty starter, 110V, 1.4-2.2A,
Fuji sw-05/2L heavy duty starter, 110V, 1.4-2.2A,
Heavy Duty Motor Starter, 100/110vac

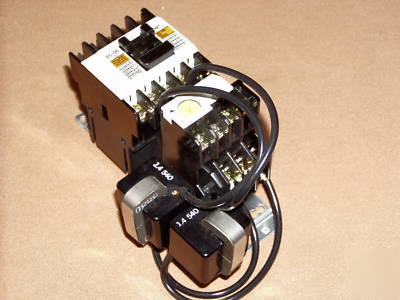

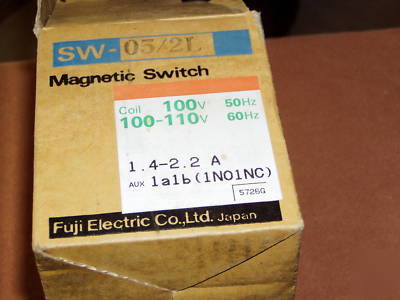

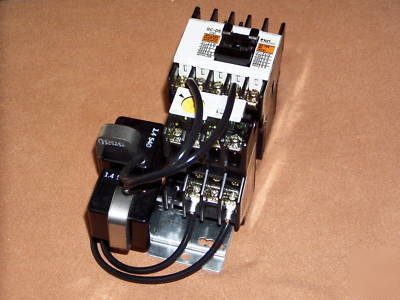

For sale is one NIB Fuji SW-05/2L Heavy Duty Motor Starter with 1NO and 1NC auxiliary contacts (1a1b). The thermal overload relay is adjustable from 1.4-2.2 amps. The starter consists of a SC-05 contactor with a TR-0NL overload and two 'reactors'.
Additional information is on pages 15-16 / 27 at the link below.
http://search.fujielectric.com/group/search.x?q=sw-05%2F2l&image2.x=33&image2.y=8&ie=UTF-8&page=1&mode=en_whole#0
The description below of a heavy duty starter from Fuji is from their web site
This starter is designed for applications
to those loads where the inrush current
at the moment of starting persists for a
long period, such as with blowers,
separators whose inertia force is large.
In these cases the inrush current could
last up to 7-8 sec., and would cause a
standard type starter to misstrip.
FUJI heavy load starters are highly
suitable for such conditions and are
provided with long time operating type
thermal overload relays. In this type of
overload relay the small-sized saturable
core reactors are connected in parallel
with the heater elements. These divert
the inrush current at the time of starting.
