> Encoder size nema 11 resolver replacement servo mount
Encoder size nema 11 resolver replacement servo mount

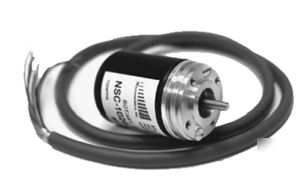

This is a direct Replacement for a NEMA 11 Resolver.
Older Machines such as Milling and Turning Machines use Resolver to feed positioning signals back to the Numerical Control.
A Resolver provides an analog (cos/sin) signal but many newer controls require a Digital (Square Wave or TTL) Signal.
Using this Encoder will allow you to easily replace a Resolver and bring the correct signal to the CNC Control.
A, B, Z phase, inverse A, B, Z phase
50 G, 11 ms, 3 times each on XYZ
10 ~ 50 Hz, double amplitude 1.5 mm, 2 hours
Specifications can be found here: http:// /NSC-RES.pdf
For Quantity pricing or units with 1500 Pulses please contact us!
