80 gal northland reactor-t-316 s/s-42.7/14.3 psi #6075

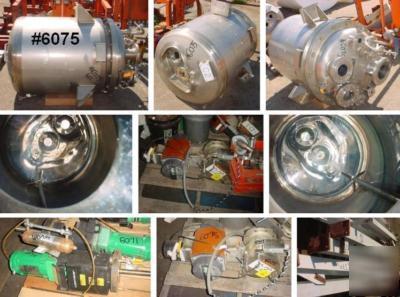

80 GALLON NORTHLAND REACTOR - T-316 S/S - 42.7/14.3 PSI JACKET
1 - used approx. 80 gallon Northland Stainless Inc. Reactor. T-316 stainless steel (8 ga.) inner shell inner top head and inner bottom head. T-304 stainless steel jacket shell and jacket head. Johns-Manville 814 insulation and stainless steel sheathing. T-316 stainless steel flanges and couplings. 28 in. ID x 34 1/2 in. straight side. Shell MAWP 42.7 psi at 176 deg. F. Min DWT -20 deg F at 42.7 psi. Stainless jacket MAWP 14.3 psi at 176 deg. F. Northland serial #957009. National Board #1912. Bolted dish top with misc. inlets including 6 in. flanged opening for agitator drive 1 3/4 in. 4 in. + addl. small inlets. .5 HP Lightnin Vektor drive. UL listed. 230/460V 1725 RPM. Pressurized mechanical seal. Vektor model V5S37 serial #95/E35630. Stainless steel shaft inside vessel with 3 pitched turbine blades and stabilizer ring. Unit built in 1995. Shell head & jacket thickness .165 in. Lug mounted with structural supports (included). Approx. 3 in. center bottom outlet approx. 2 1/2 in. bottom outlet. Schematic drawing in PDF format available at http:// /pdf/6075.pdf. F.O.B. - Cleveland OH
