Miele laboratory glassware washer lab flask scrubber
This listing is for (1) MIELE LABORATORY GLASSWARE WASHER LAB FLASK SCRUBBER MODEL G 7736. This is in VERY NICE physical condition and was recently pulled from active service.

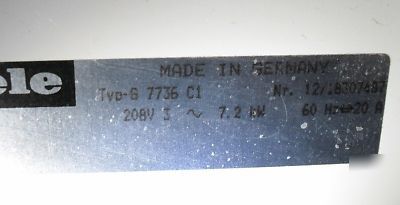

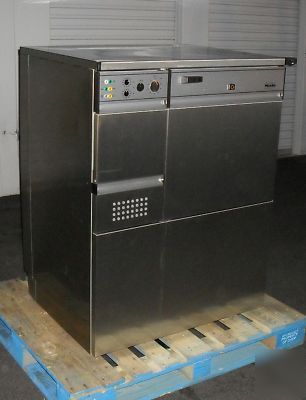

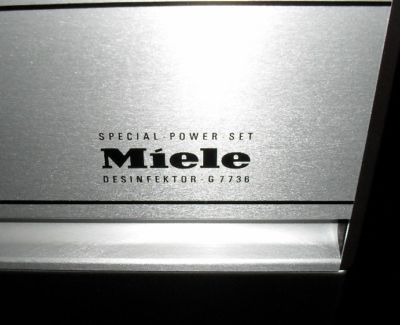

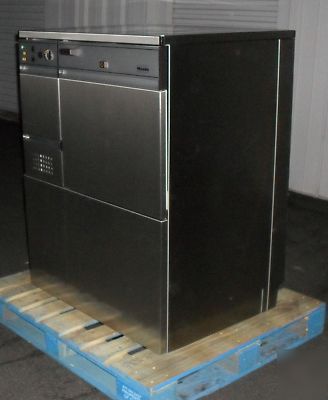

Miele Laboratory Glassware Washer, Model G 7736 C1 Disinfector
The G 7736 is a freestanding glassware washer specially designed for the most difficult cleaning applications.

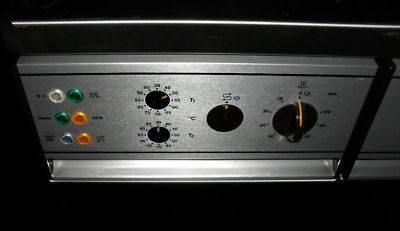

An on-board, fully programmable microprocessor control unit and extra-high capacity 156gpm circulation pump ensure superior results cleaning even the toughest contaminants.
Automatic Wash Programs include: Standard laboratory wash, Standard laboratory wash with DI
rinse, Water softener regeneration, Pump primer, Unlimited programming potential
Wash Water Temperature: Adjustable up to 95oC (203oF) maximum temperature
Final Rinse Water Temperature: Adjustable up to 95oC (203oC) maximum temperature

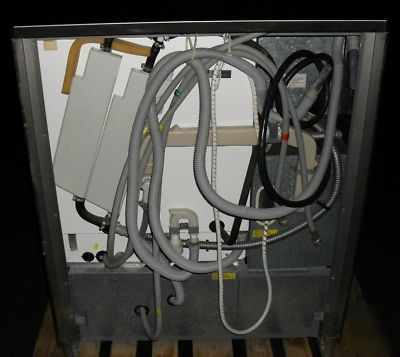

Dual pump system: Washer incorporates separate pumps for circulation and draining to eliminate
cross-contamination and increase pump life
Water softener: Built-in adjustable water hardness control, with separate water softener
reactivation program and indicator light

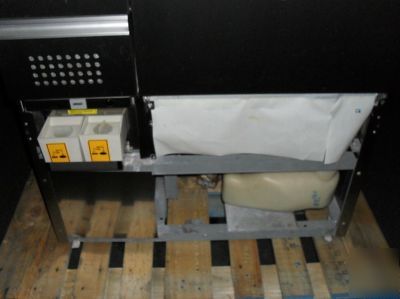

Detergent Dispenser: Automatic liquid detergent dispenser. Dispenses 30 ml per minute from 1.5L
container integrated within washer
Neutralizer Dispenser: Automatic liquid acid neutralizer dispenser. Dispenses 20 ml per minute
from 1.5L container integrated within cabinet
Circulation Pump: Rated at 156 gallons per minute, constructed with ABS plastic impeller and
Heater rating: 6000 watts @ 220V for efficient, fast heating
Drying System: HEPA filtered forced air drying cycle with adjustable temperatures and time. Hot air
can be blown through optional injectors for thorough drying of interior of narrow-necked glassware
Built-in steam condenser eliminates the need for hook-up to building ventilation system
Exterior Overall: 45.5 high x 35.5 wide x 27.5 deep

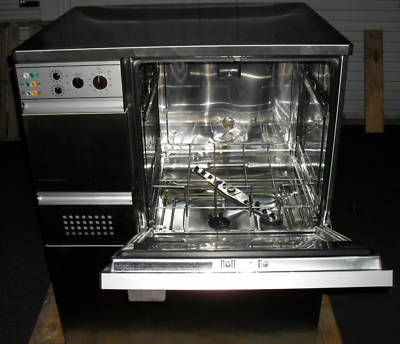

Interior useable space: 18.5 high x 20.5 wide x 20.5 deep
Interior Construction: Chamber walls and ceiling are constructed of type 304 stainless steel.
Chamber floor and door are constructed of type 316 stainless steel. All surfaces are electropolished
for increased corrosion-resistance
Exterior cabinet. Constructed of type 304 brushed stainless steel for corrosion-resistance
Washer is manufactured in a facility which is registered with ISO 9001 quality system
PLEASE SEE THE ENLARGED PICTURES FOR MORE INFO. WHAT IS SHOWN IN THE PHOTOS IS WHAT IS INCLUDED IN THE SALE.
MORE QUESTIONS? PLEASE CALL 602 4161044
