Han's 60 watt high precision yag laser spot welder

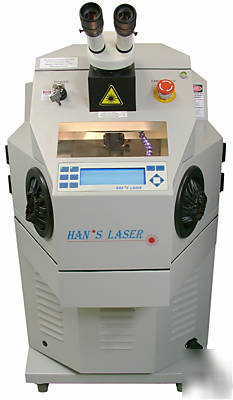

Han's W60 High Precision Laser Welder
* 60Watt High Precision Spot Laser Welder
* Leica Adjustable Liquid Crystal
* Welds & Solders Most Metals
* High Performance, Speed & Efficiency
* Smooth Weld & Solder Joints
* Certified FDA/CDRH Compliant
* Gas Feed Control for Improved Weld
* One Year Warranty & Training Included
* Nationwide - U.S. Based Services
* CCD Camera System Option Available
The W60 laser spot welder is used for precision welding such as attaching miniature accessories for precision medical devices & tools, dental & orthodontic applications, electronics, attaching integrated circuit board leads, fine detail work such as attaching watch hairsprings and for fine gold/silver/platinum jewelry repair, finishing, setting and processing. In general, this system can repair breaks, fuse pieces together, fill air bubbles and mend cracks. The thermally affected area is small and the welding spot size can be adjusted as needed. The laser spot welder is suitable for gold, silver, platinum, stainless steel, aluminum, and metal alloys. The solder joint is smooth and tiny, no need for after process cleaning. The auto-shutter Leica microscope will allow precise positioning of the laser beam for welding to prevent damage of precious inlaid stones.
The laser spot welder is suitable for gold, silver, platinum, stainless steel, aluminum, and metal alloys. The advantages of this system are high speed, high efficiency, environmental safety and a clean finished weld.
PPS400V voltage adjustable switching power supply
ceramic reflecting cavity (Made in U.K.)
single phase 3 core mode, 220V 5%/60Hz/20A
LEICA microscope (Made in Germany) and liquid crystal light valve
1080mmX600mmX1050mm (42.51 x23.62 x41.33 )
UK Made Ceramic Reflecting Cavity
Handy Quick-Change Lamp Location
*Prices subject to change without notice - Please call to confirm price & configuration.
*Actual machine appearance may vary slightly from photo.
Han's Laser Technology Company
Address: 12440 Oxford Park Drive, Suite B111
