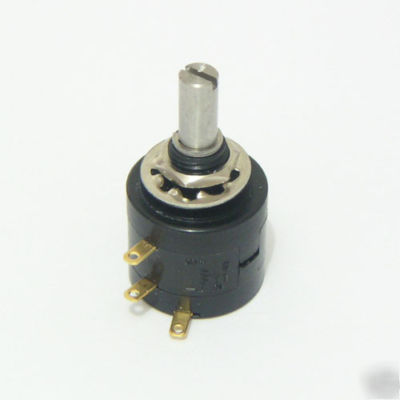

> 1× sakae precision potentiometer 22HP-10 10TURNS ±.25%
1× sakae precision potentiometer 22HP-10 10TURNS ±.25%
Manufacturer: sakae, made in Japan;
Effective electrical travel:3600 5 ;
Resistance:1K 2K 5K 10 K 100Kohm;
Total resistance tolerance: 5%;
Independent linearity: 0.25%;
Housing size:22.5x20.0mm, Dia x H
Total size: 22.5x41.5mm, Dia x H
Dielectric Strength:1 minute at 1000 V.A.C.
Insulation resistance: over 1000 M at 500 V.D.C.;
Rotational Life:1,000,000 cycles;
Temperature coefficient: 20 ppm/ C;
Operating temp range:-55~+105 C;
2.1pc. Each inner teeth washer and hex nut are attached.
4.If you need a tracking number, please plus $2 for it.
