Nikken cnc NX5 spindle speeder increaser speed mill
Nikken NX5 Spindle speeder increaser.
Item is in like new condition.
Nikken's NX HiSpinners increase your tooling RPMs up to 5 times faster (up to 20,000 RPM), enabling you to reduce your cycle times and per-piece costs with your current machines. They turn your standard machining center into a high-speed machining center.
The gears are finish ground with Nikken's original Fluid-Dynamic Grinding Process, which contributes to the HiSpinners quiet operation and long life. Using a special synthetic lubricant, and a specially designed cooling jacket, HiSpinners maintain a comfortable operating temperature without the need of forced air or coolants.
Nikken's NK HiSpinners utilize precision SK Collets, maintaining a runout accuracy of less than 10 microns at 4XD. Runout accuracy is further improved by using Nikken's patented TiN coated bearing nut.
HiSpinners do not require the need for messy coolants, making them ideal for working with woods, plastics, graphite, and most non-ferrous materials.
Nikken NX HiSpinner Specifications:
* Available Tapers: CT40, CT50, BT30, BT40, BT50 (specials available upon request)
* up to 10mm (0.394") with SK10 collets
* up to 16mm (0.63") with SK16 collets
* Drive Ratio: 5 to 1 or 4 to 1 depending on size
* Maximum Speed: 10,000RPM or 20,000RPM depending on size
* Air cylinder for cooling (NXE-COOL) is highly recommended to increase stability during milling

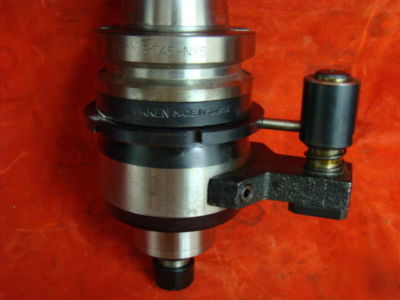

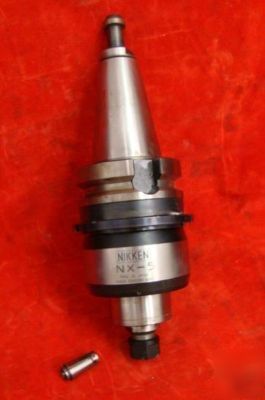

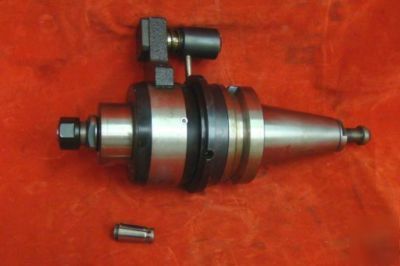

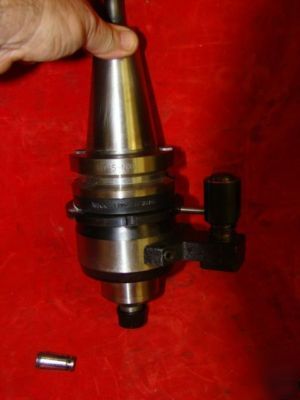

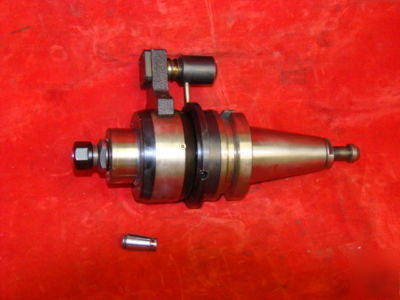

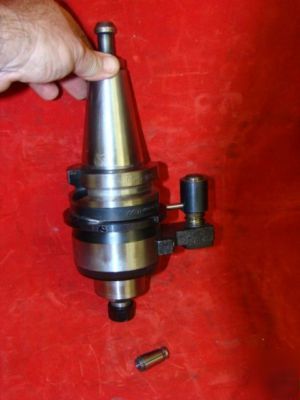

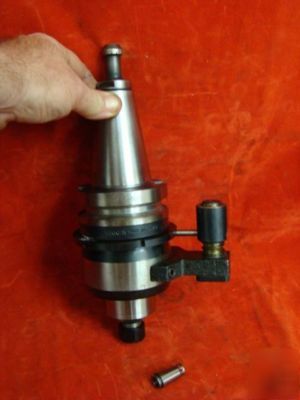

ITEM COMES AS SHOWN IN PICTURE.
