Custom stainless vacuum manifold
Custom Stainless Vacuum Manifold

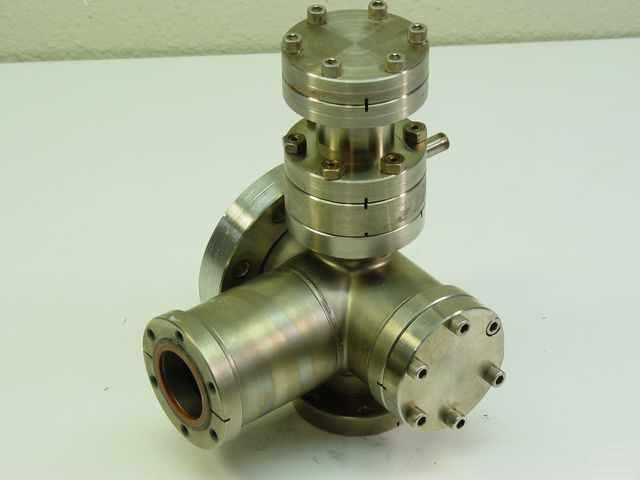

* As pictured, standing up, horizontally, it is a T section made from 63 mm OD tubing.
* Vertically, there is a 38 mm tube straight through, making for a 5-way manifold.
* Two of the three flanges on the T are of the same size as on both 38 mm tubes, 69.5 mm, with a 34.5 mm dia hole.
* The large flange has a 114 mm dia with a 61.6 mm hole.
* The smaller flanges have 6 bolts on a 29.4 mm radius. They are probably UNC -20.
* The smaller flanges are threaded and the largest have 8 holes, 8.8 mm dia, on a 46 mm radius. This flange is 19 mm thick. The top part of the vertical section has an additional section with flanges.
* Radially, on this section, is a cut off tubing (from a thermocouple gauge?) 9.4 mm OD x 23.2 mm long.
* On top of this section is yet one extension with flanges, 54.2 mm long, and a cover lid. This is on top in the first picture. Total weight: 4.16 kg.
