Item Title: 30R Series Single Phase AC Induction Motor
30R Series AC Induction Motor Model 5240
* Class "B" insulation system for long life
* Aluminum end shields for high thermal efficiency and light weight
* Permanently lubricated, noise tested ball bearings
* Locked bearing design minimizes shaft end play
* Capacitor is NOT included.
* Category: Permanent Split Capacitor, Non-Synchronous
* Connection Diagram: 074 10296
* Capacitor Part Number: 49401015 - *REQUIRED; Model 5240 will NOT work properly without a capacitor.
Product Links: Connection Diagram (PDF)

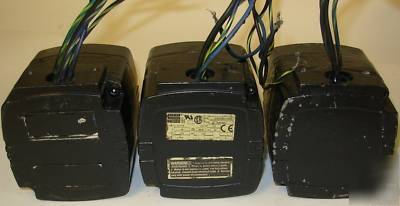

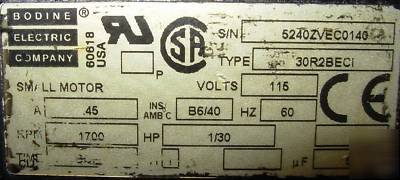

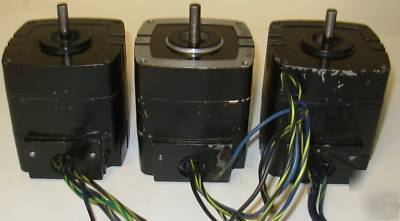

***NOTE: This listing is for all three motors. There is only one label; the other two motors were pulled from the same machinery and are identical.
