Vestil carousel ca-8-2

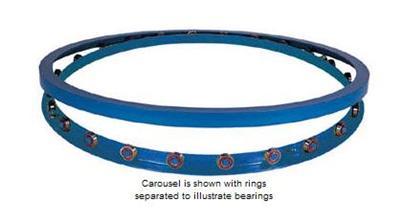

The Carousel rotates materials 360 degrees with the assistance of an operator. Now loading and unloading operations can be done more efficiently with less fatigue and risk of back injury. The carousel may be added to an existing work bench, scissor table or simply placed on the floor. Constructed from two pieces of rolled structural angle. A series of roller bearings transfer the load smoothly and evenly to the supporting surface. Four guide rollers keep the rings aligned. The overall height of the carousel is only 2.25"
Elevated Base - 40"Wx40"Lx12"H
Elevated Base - 40"Wx40"Lx24"H
1/4" thick top plate 48"Wx48"L
Stainless Steel Rings (40" Dia. only)
Manual Brake (field installed)
Hand operated locking detent (factory installed)
Foot operated locking detent (factory installed)
Click the for the PDF of the Approval Drawing for that model.
All the ergonomic benefits of the standard carousel with a top plate and stabilizing center pin. Unit will handle a wider variety of loads. Features include 1/4" tread plate top on 4,000 lbs. and 3/8" tread plate top on 6,000 lbs. models. Also includes a heavy-duty maintenance free bearing. The king pin design allows off set loading up to 50% of the capacity on at least 50% of the deck. Standard top plates are square with rounded corners. Contact factory for special sizes.
Low-Profile design is ideal for use with Pallet Trucks
When confronted with minimum floor space and only a hand pallet truck, the Thin Spin low-profile carousel is ideal for loading and unloading pallet applications. The Thin Spin is pallet truck loadable because of its sleek 7/8" overall height. The effective ramping length is
4-3/8"; slope is a mere 11 . A safety detent lock restricts carousel rotation when not in use. Units require a starting force of 35 lbs. and a maintaining force of 25 lbs.
51" Usable Diameter (60" Overall Diameter)
45" Usable Diameter (54" Overall Diameter)
39" Usable Diameter (48" Overall Diameter)
