#10194 - bourn & koch model 25H cnc gear hobber

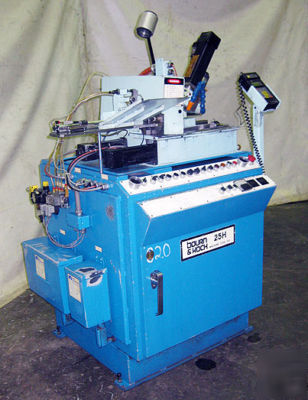

BOURN & KOCH MODEL 25H CNC GEAR HOBBER
Distance - workspindle face to tail center:
Distance - workspindle face to center line of hob spindle
(Dependant upon center distance & helix angle)
Counterbore diameter .8130" / .8125"
Bolt circle diameter - (4) 10-32 UNF 1.625"

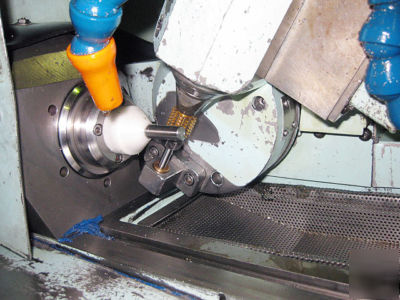

Hob slide assembly will accommodate a 1.25" diameter x 1.50" wide hob and allow for crowning, double cutting and radial worm gear cycles. The hob shifter can be programmed from .001" to 1.00" shift. Interchangeable hob arbors provide precision hob location. Precision ball screws and slide surfaces which are lubricated by a grease system.

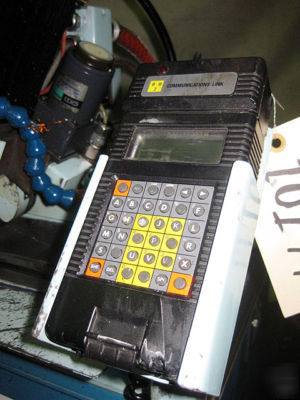

NUM 1000H 4-axis controller with conversational programming which is specifically designed for gear hobbing
Machines are designed for use with water soluble or oil based cutting oil Maximum hob RPM is 3,000
