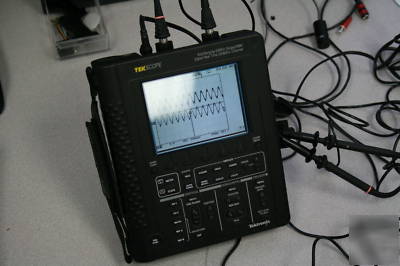

Tektronix tekscope THS720 100MHZ oscilloscope ths 720
* Field or Bench Electronic Troubleshooting
* Floating (Nongrounded) System Measurements
* Sample Rate (each channel): 500 MS/s
* Sensitivity: 5 mV to 50 V/div (to 500 V/div with 10X probe).
* Vertical Resolution: 8-Bits.
* Horizontal Accuracy: 200 ppm.
* Trigger Modes: Auto, Normal.
* Trigger Types: Edge, Pulse, Video, External
. * Video Trigger Formats and Field Rates: Odd field, even field and line.
* External Trigger Input: 5 MHz TTL compatible.
* Waveform Processing: Add, Subtract, Multiply, Calculate Watts = V x I.
* Waveform Storage: 10 waveforms.
* Acquisition Modes: Sample, Envelope, Average, Peak Detect.
* Cursor Measurements: delta Volts, ? Time, 1/? Time (Hz), Degree (phase).
* Cursor Types: Horizontal Bars, Vertical Bars, Paired (volts @ time).
* Display System: Interpolation: Sin(x)/x. Format: YT and XY. Mode: Vector, Dot, Vector Accumulate, Dot Accumulate.
- Tektronix TekScope THS720 100MHz Ocilliscope - Digital Realtime 500MS/s
Revision: Product has been tested and both channels work, but may need new battery
