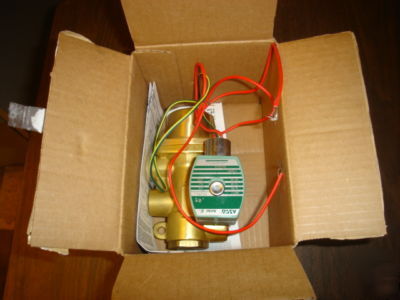

Asco 8344G072 4-way solenoid valve
ASCO 8344G072 120/60, 4-Way Solenoid Valve, 3/8" NPT, 120/60 VAC, NC, 10 TO 150 PSI. ASCO Red Hat pilot operated piston/poppet 4-way solenoid valves will provide control of air, inert gas, water, light oil (300SSU) and other clean flowing media compatible with the materials of construction. These sturdy, solid high flow valves are typically used to operate double acting cylinders and actuators. This valve has 4 ports, one inlet, two outlets, and one exhaust port. Mountable in any position. A minimum operating pressure differential (as shown below) must be maintained between the pressure and exhaust ports. Exhaust port must be full area and unrestricted. Flow control valves (if used) should be located in the cylinder lines only.
