16-soic to dip prototype adapter/converter/FD2716

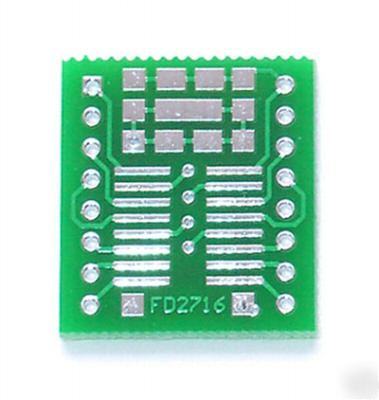

FD2716 16-SOIC to .600 DIP Adapter/Prototype Board
Accepts 8 to 16-pin SOIC (0.05in/1.27mm pitch)
The FD2716 adapter provides ample space for a variety of medium density surface mount circuit designs. The peripheral part mounting zones and circuit foils permit the installation of devices in-line with the IC, or across adjoining circuit. Foil modification (see below) and jumpers can be used to configure board to meet 0603, 0805, Mini-Melf, A-size (3216-18 EIA) Tantalum devices and many more. Diodes, inductors, LED s and other device within size range above can be mounted as well. This 16-pin DIP can be plugged into a 600 mils sockets or solder less breadboards, or soldered onto a prototype board. This little board is great for a wide range of usage.
