> New mastech 7040 analog meter w/protective holster -

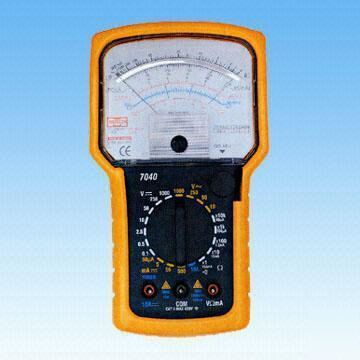

New mastech 7040 analog meter w/protective holster -
This meter measures all of the following:
Key Specifications/Special Features:
* DC voltage: 0.1/0.5/2.5/10/50/250/1000V +/- 3% full scale
* AC voltage: 10/50/250/1000V +/- 4% full scale
* DC current: 0.05 mA/5 mA/50 mA/500 mA/10A +/-3% full scale
* Resistance: 2K/20 K/200 K/2 M/20 M ohm +/-3% full arc
* Diode test: Test current approx. 1mA; Test voltage: approx 2.4V
* Continuity test: 0 to approx. 30 ohm
* Decibel: -10 to 62 (0dB: 1mW/600 ohm)
* Operating temperature: 0 deg. C up to 40 deg. C at RH <80%
* Dimensions: 190 x 108 x 50mm
* Weight: approx. 470g including battery
* Power supply: 1 x 9V & 2 X AA
This meter requires 1-9V Battery (Included) & 2-AA Batteries - (Included)
