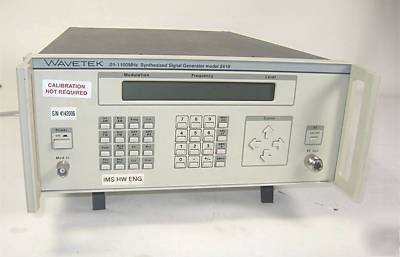

Wavetek 2410 1100MHZ synthesized signal generator
This listing is for a Wavetek 2410 Synthesized RF Signal Generator. This instrument is in good cosmetic and fully functional in working condition. We guarantee the instrument to be operating within OEM specs and be in calibratable condition for 30 days. We are including a .pdf manual and power cord.
Wavetek The 2410 RF Signal Generator is a dual microprocessor controlled, single-loop synthesized signal generator that covers the frequency range of 10kHz to 1100MHz. It has an output power level continuously adjustable from +13 dBm to -127 dBm. In addition to CW operation, it is capable of AM/FM operation from an internal or external source. The 2410 has a very broad 500kHz to 1MHz peak FM deviation over the majority of its operating range. Standard features include an exclusive AutoCal self-calibration function for frequency and amplitude, extensive user diagnostics, an automatic power up test sequence, and 16 nonvolatile memory locations to store front panel settings. A 10MHz sine wave reference output is available at the rear panel. HP-IB programmable, a great choice for ATE
