36" blanchard vert-spindle rotary surface grinder 23784

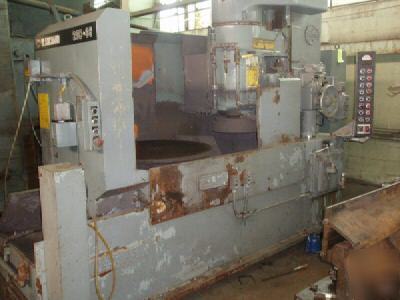

36" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
New 1981, Serial No 15446, Model 20D-36
Vertical Spindle Machine Design
Extended Vertical Range w/24" Height Under Wheel
Cylindrical Diamond Grinding Wheel
Hand Operated Trabon Lubrication System
Magnetic Chuck, Diameter............... 36"
Swing Between Coolant-Guards........... 38"
Magnetic Chuck Work Load Capacity...... 3000 LBS
Height Under Grinding Wheel, Maximum... 24"
Grinding Wheel Diameter, Maximum....... 20"
Grinding Wheel Width, Maximum.......... 5"
Grinding Wheel Hole Diameter........... 16.5"
(6) Chuck Speeds, Range................ 6 to 33 RPM
Power Down Feeds, Range................ .004 to .080 IPM
Spindle Motor, Horsepower.............. 30 HP
Chuck Motor, Horsepower................ 2 HP
Floor Space Required, W x D............ 11'8" x 8'4"
Overall Height......................... 10'10"
Weight, Approximately.................. 15000 LBS
NOTE: We Can Provide A Regular Magnetic Chuck And/Or A
Segmented Grinding Wheel Instead Of The Chuck
And Grinding Wheel Already On The Machine.
PRICE: F.O.B. OUR WAREHOUSE........... $39,500.00
