Sorvall cellwasher 2 laboratory blood cell washer great
The Cellwasher 2 is designed to perform the washing phase of the Coomb's Procedure automatically. In normal AUTO mode operation, after placing two or three drops of a pre-prepared 2 to 5% red blood cell/saline suspension* into each tube, the Cellwasher 2 will automatically add saline, spin at high speed to concentrate the cells, decant the saline, and agitate to resuspend the washed cells for the addition of Coomb's reagent. The Cellwasher 2 is also capable of being used manually as a low speed centrifuge, spinning at either of
two preset speed ranges (LOW speed or HIGH speed mode, see Cellwasher 2 Specifications on next page).

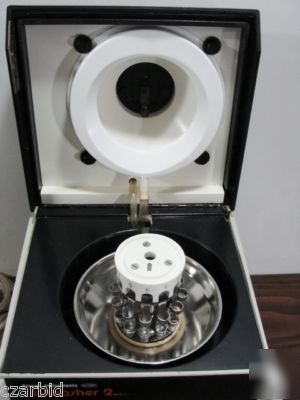

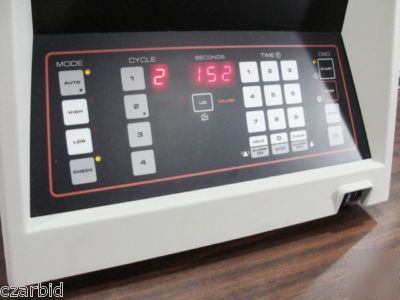

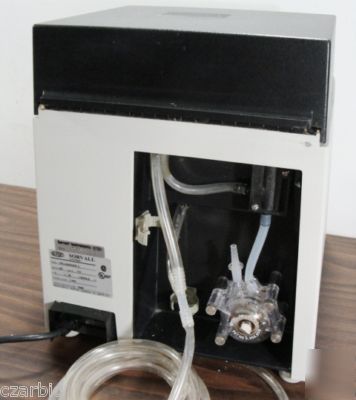

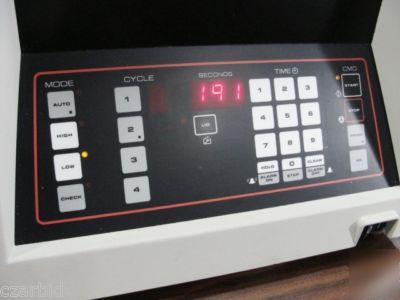

The Cellwasher 2 combines a peristaltic saline pump and a wet chamber centrifuge in one cabinet. The centrifuge portion uses a dedicated DA-12 Rotor, which is a unique dual-angle swingingbucket rotor that is designed to accommodate up to 12 each of either 3 ml or 5 ml tubes. The Cellwasher 2 is microprocessorcontrolled, featuring a front control panel with sensor-touch keys and a digital timer for the wash cycle. Other features include a saline-detect system with an audible low-saline warning, and an agitate cycle that ensures complete resuspension of cells and eliminates manual agitation.
Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35.6 cm (14.0 inches)
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31.8 cm (12.5 inches)
Height: Lid closed . . . . . . . . . . . . . . . . . . 36.8 cm (14.5 inches)
Mass (Weight): . . . . . . . . . . . . . . . . . . . . 16.4 kg (36.0 lbs)
Motor Type: . . . . . . . . . . . . . . . . . . . . . . . 3-speed induction
Electrical Supply . . . . . . . . . . . . . . . . . . . . 120V 10%. 60 Hz, 5A

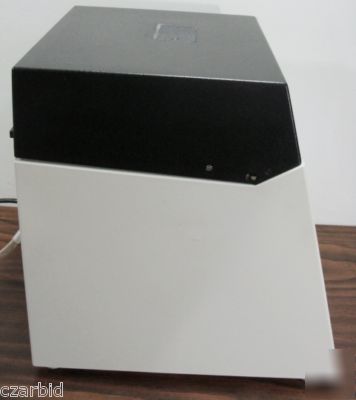

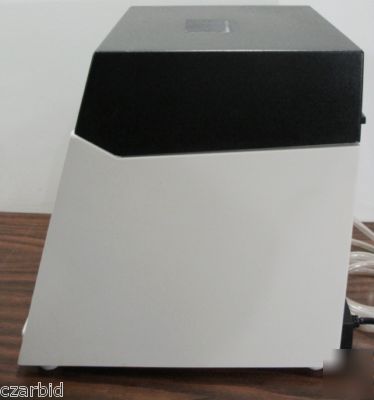

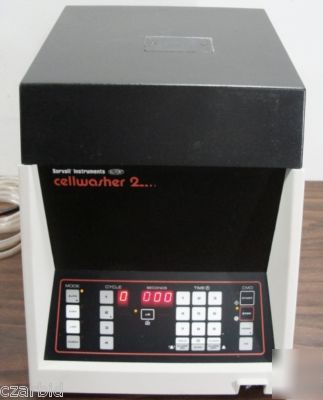

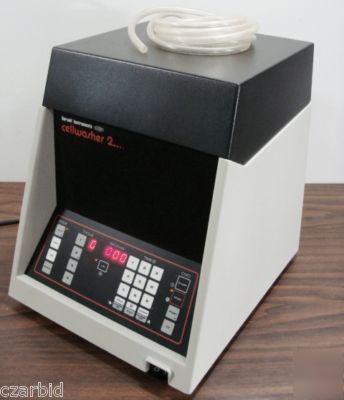

Sorvall Cellwasher 2 pictured, Operating Instructions Manual, & Power chord.
