New miller 907005 diversion 165 ac/dc tig welder

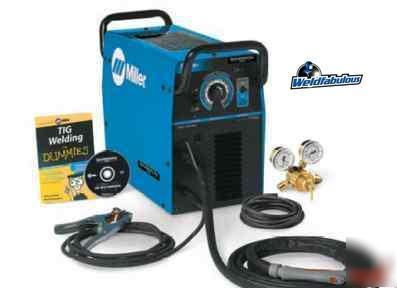

Miller 907005 Diversion 165 Ac/Dc Tig Welder New
Miller Electric # 907005 Diversion 165 NEW! Easy-to-understand operator interface. Only three switches to operate the machine: a power switch, a material selection switch, and an amperage control/material selection switch.
Inverter-based, AC/DC power source provides a more consistent welding arc while operating more efficiently (less energy is used).
Portable. Whether it's in the shop, garage or at the race track, at 50 pounds it can be taken anywhere.
HF start for non-contact arc starting that elminates tungsten and material contamination.
Fan-On-Demand improves power efficiency and reduces noise and maintenance by lessening the amount of airborne contaminants pulled through the machine.
Auto-Postflow protects the weld end zone and electrode by optimizing postflow time based on welding amperage - for adequate shielding every time without waste and no need for adjustment.
Fully adjustable amperage control from 10-165 amps DC and AC.
NEW! Weldcraft LS17 TIG Torch. 150 A, air-cooled torch features the hand controlled amperage adjustment built into the handle of the torch.
* DC: 150 A at 16 VDC, 20% Duty Cycle
* AC: 150 A at 16 VAC, 20% Duty Cycle
* Aluminum Oil Pans & Intake Manifolds
* Aircraft Frames & Components
* Weld Repair on Home Equipment
* Power source with primary cord (50A, 230 V plug, attached)
* 12.5 ft (3.6 m) LS17 Weldcraft TIG torch with backcap, ceramic gas cup, 3/32 in (2.4 mm) collet and collet body, and 2% ceriated tungsten
* 11 ft (3.4 m) work cable and clamp
* Smith Argon regulator/flow gauge with hose
* TIG Welding for Dummies book
* Welding project blueprint for a machine cart/cylinder rack
