Dpc-931 digital process calibrator multimeter

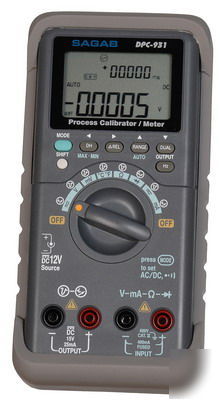

Process Calibrator MultiMeter DPC-931
Factory NEW in box with warranty!
This device can be used not only for instrument system maintenance but also for maintaining and servicing industrial meters and for testing electrical circuits and electronic equipment. Even sensors for automotive or automation control systems can be measured. In addition to generating high accuracy DC voltage and current sources, this device can also generate square wave with PWM features. That is a free-for-all application function, and is including a strong multimeter function. It can generate and measure signals simultaneously.
(with adjustable duty cycle and amplitude)
Simultaneous source/simulate and measure on large dual display
Bipolar current ( 25mA) and voltage ( 1.5V, 15V) outputs
1ms peak glitch measurement
DCV, AVC, DCA, ACA, Diode, Temperature, Duty Cycle, Continuity and Pulse with measurement.
(measurement for non linear loads both voltage and current)
Multi-display for easy analyze of components or signals
Computer interface with PC
(for recording only, Interface cables not included!)
Measures AC and DC Voltage up to 600V
DPC-930 - same as DPC-931 measures AC and DC Voltage up to 300V.
DPC-931 - same as DPC-930 + measures AC and DC Voltage up to 600V.
DPC-932 - same as DPC-930 + AC power supply and built in rechargeable batteries .
!Please compare any specifications with Fluke instruments, example Fluke 189!
+/- (0,03%rdg+3dgt) for positive range, +/- (0,06%rdg+3dgt) for bipolar range
Input impedance 10MOhm(100MOhm for 40mV and 400mV)
AC-voltage (TRUE RMS: from 5% to 100% of range)
Input impedance 10MOhm // less than 100pF (1000MOhm for 40mV and 400mV) Crest factor <=3
AC+DC-voltage (TRUE RMS: from 5% to 100% of range)
AC-current (TRUE RMS: from 5% to 100% of range)
AC+DC-current (TRUE RMS: from 5% to 100% of range)
1ms Peak Hold Voltage Specified accuracy +/- 40 digits >1ms in duration
1ms Peak Hold Current Specified accuracy +/- 40 digits >1ms in duration
Instant continuity: Built-in buzzer sounds when resistance is less yhan 10,0Ohm
Buzzer sounds when reading is below 100mV
The accuracy does not include the tolerance of thermocouple probe
Note loading coefficient 0,012mV / mA for 1,5V output
loading (burden voltage) coefficient 1uA/V
0,5, 1, 2, 5, 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 120, 150, 200, 240, 300, 400, 480, 600, 800, 1200, 1600, 2400, 4800Hz
This is a factory NEW item and comes with 1 year MFG warranty
Protective holster with brackets
Alligator clip with banana leads
12V DC battery box with leather pouch
