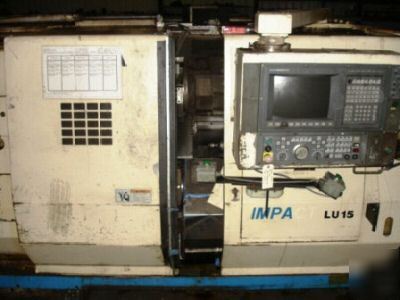

#lu-15 okuma 4-axis cnc lathe #25219
New 1996, Serial No. 0516, Model LU-15
10" 3-Jaw Chuck - Hydraulic Tailstock
12 Position Upper & 8 Position Lower Turret
Swing Over Bed......................... 20.87"
Swing Over Carriage.................... 14.96"
Swing Over Cross Slide................. 12.99"
Maximum Turning Diameter............... 10.62"
Maximum Turning Length................. 23.62"
A-Axis Travel (Upper/Lower)............ 10.24"/5.51"
Z-Axis Travel (Upper/Lower)............ 25.20"/24.21"
Headstock & Main Spdl Nose............. JIS-A2-8
Spindle Diameter At Front Bearing...... 4.72"
Spindle Bore Diameter.................. 3.15"
Internal Taper......................... 1/10 TAPER
Spindle Speed Range.................... 75-3800 RPM
No. Spdl Speeds Auto................... 2 RANGES
Upper Turret Tool Stations (Slotted)... V12
Upper Turret Tool Size, OD Type........ 1" x 1"
Upper Turret Tool Size, ID Bar......... 1.50" DIA
Upper Turret Turret Size (Dia.)........ 14.17"
Upper Turret Index Coupling............ 7.09"
Upper Turret Clamping Force............ 6,173 LBS
Upper Turret Index Time................ 0.2 Sec/Station
Lower Turret Tool Stations (Slotted)... V8
Lower Turret Tool Size OD Type......... 1" x 1"
Lower Turret Tool Size, Max ID Bar..... 1.50"
Lower Turret Size (Diameter)........... 14.17"
Lower Turret Size Of Index Coupling.... 7.09"
Lower Turret Clamping Force............ 6,173 LBS
Lower Turret Index Time................ 0.2 Sec/Station
X-Axis Rapid Traverse Speed............ 590 IPM
Z-Axis Rapid Traverse Speed............ 787 IPM
X-Axis Cut Fdrates (IPR)............... 0.0001"-40000
Z-Axis Cut Fdrates (IPR)............... 0.0001"-40000
Main Spindle Drive Motor (VAC)......... 30/20 HP
Power.................................. 39 KVA 220V
Floor Space Req........................ 156" x 83" x 76"
Net Weight............................. 11660 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $24,500.00
