Veeco dektak 3 surface profiler measuring system

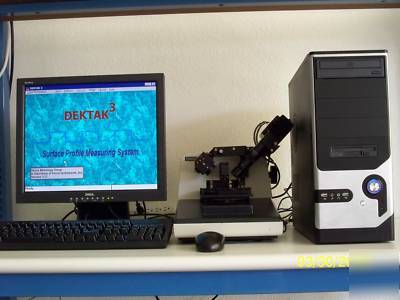

The Dektak 3 is an advanced surface profiler measuring system.

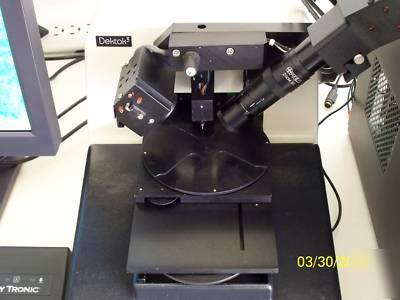

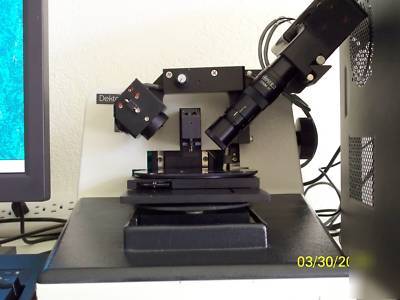

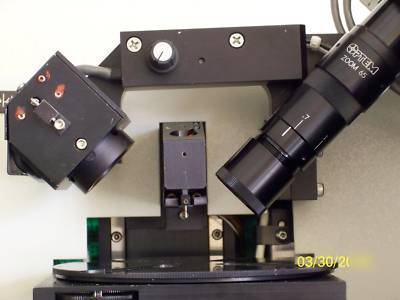

Measurements are made electromechanically by moving the sample beneath a diamond-tipped stylus. The high precision stage moves a sample beneath the stylus according to the user-programmed scan length and speed.
The Dektak is equipped with 26 different analytical functions for measuring surface texture.

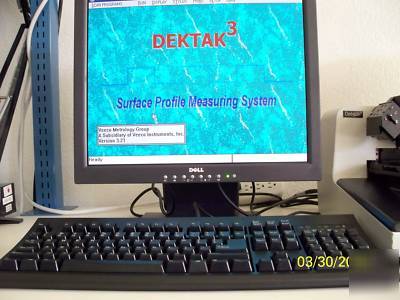

New Pentium III computer with w/98, the Dektak software 3.21 can only function to work with nothing higher than w/98.
The Dektak has been totally refurbished to factory specs.
Vertical Range: 100A to 655Ka.
Scan Length Range: 50 microns to 30mm.
Maximum sample thickness: 20mm
Request more information if needed.
