Usa 30 nat. taper with 1-1/2-18 adapter for boring head

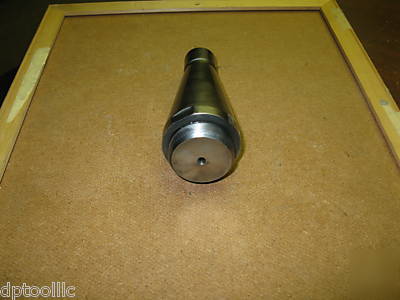

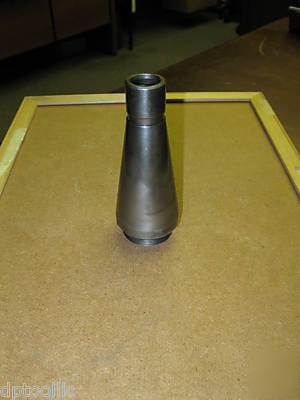

USA 30 National Taper Arbor Shank x 1-1/2-18 adapter with -13 draw bar and drive flange for Criterion or Flynn style Boring Heads
This one was made around 50 years ago back when they built tooling to last. This arbor is made out of heavy metal steel, hardened and precision ground.
* Style: 30 taper with 1-1/2-18 adapter
* Shank: 30 National Taper with 1/2-13 drawbar
* Adapter Size: 1-1/2-18tpi
* Condition of Tang: Very Good
* Condition of Taper: Very Good, no gouges or marks
* Condition of Thread: Very Good, show no signs of abuse
* Criterion New Price: $108.00ea
We test mounted this arbor to a boring head we have in stock. It was a easy mount and a tight fit.

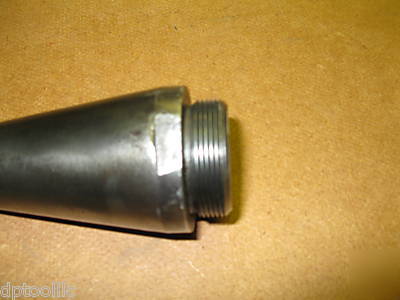

Too tighten or remove this arbor from the boring head, there is two wrench flats located opposite each other on the widest part of the arbor just above the threads. It takes a 1-3/4 wrench.
This arbor will fit the following Criterion heads: S-3, DBL-203, DBL-204, SL-203, SL-204, 3F-HB, FC-34, FB-44, CB3 Series CRI-BORE, and a TABH-250. This arbor will also fit Erickson Quick Change holders.
Stock Number: BHA2 Stock Location: Aisle 8A
