New makino A66 cnc horizontal machining center 1999

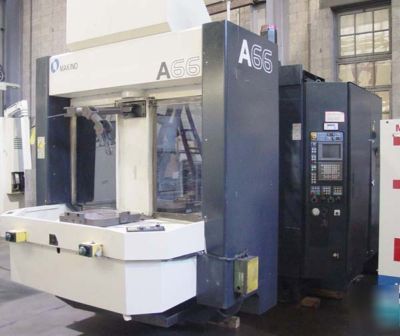

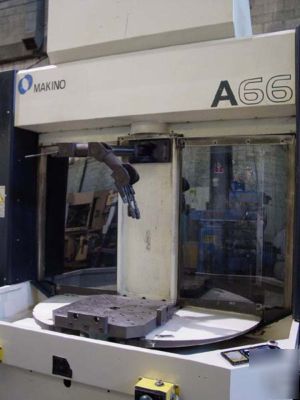

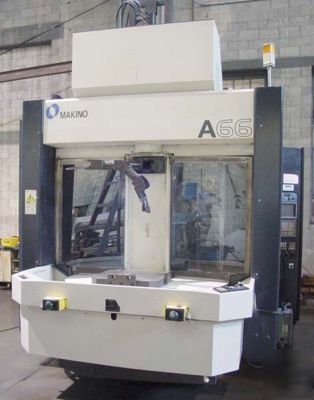

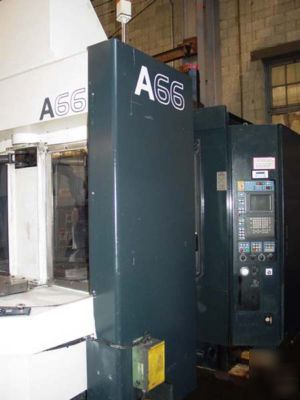

MAKINO A66 HIGH SPEED CNC HORIZONTAL MACHINING CENTER
New 1999, S/N 33 EQUIPPED WITH:

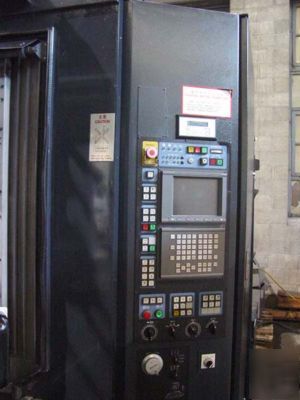

Fanuc Professional 3 CNC Control w/Color CRT (Fanuc 16iM), Multi-Part

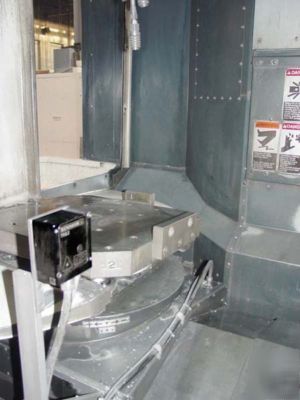

Program Storage, (2) 19.7" x 19.7" Pallets with 1 Degree Indexing,

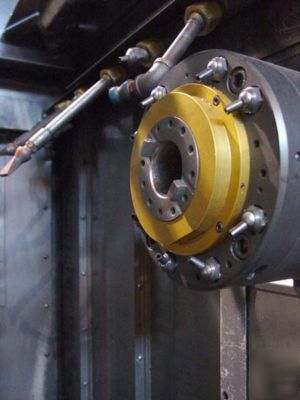

Heavy Duty 14,000 RPM Cat-40 Spindle, Tool Life Monitor, Overhead
Hydraulic Fixture Clamping, Spindle Load Monitor, Renishaw TRS2 Tool
Setting Probe, Spindle Chiller, Rigid Tapping, 40 Station Automatic Tool
Changer, Chip Conveyor, Thru Spindle Coolant. CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 31.49"
Vertical Travel (Y-Axis) ............................... 27.55"
Spindle Travel (Z-Axis) ................................ 25.19"
Pallet Dimensions ...................................... 19.7"x19.7"
Maximum Pallet Load .................................... 1100 LBS
Number of Pallets ...................................... 2
Number of Index Positions............................... 360
Feed Rate, All Axes .................................... 1575 IPM
Rapid Traverse, All Axes ............................... 1575 IPM
Spindle Horsepower...................................... 25 HP
Spindle Speed Range..................................... 50 - 14000 RPM
Spindle Taper .......................................... Cat-40
Number of Tool Stations ................................ 40
Electrics .............................................. 460/3/60
Approximate Machine Dimensions ......................... 159" x 108"
Approximate Machine Height.............................. 116"
Approximate Machine Weight.............................. 21,900 LBS CONDITION: Machine is from a Large Well Maintained ISO9002 Shop!
Appears to be in Excellent Condition !
