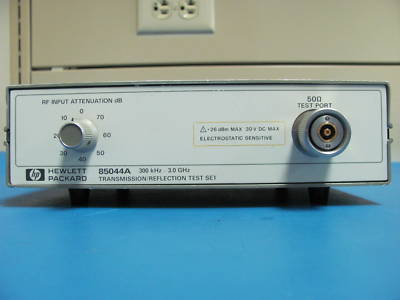

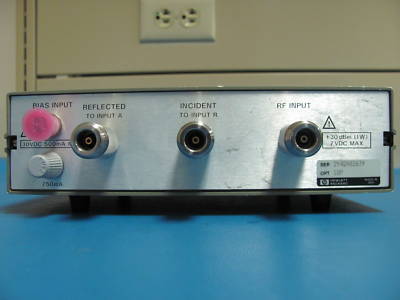

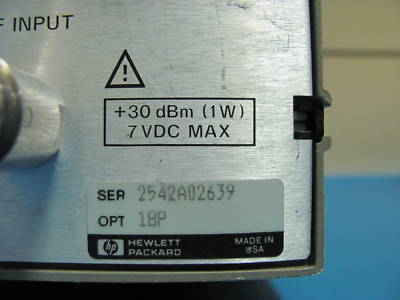

HP 85044A Transmission/Reflection Test Set with option 18P
The Agilent 85044A test set provides the capability to measure the reflection and transmission characteristics of 50 ohm devices. The device must be physically turned around to measure its reverse direction characteristics. This test set is used with the Agilent 8753A/B/C or the Agilent 8753D Option 011 only.
This HP Agilent 85044A Transmission/ Reflection Test Set is guaranteed to work according to specifications.
* Frequency Range: 300 kHz to 3 GHz
* Directivity:1 35 dB to 1.3 GHz
* Transmission Magnitude, Phase1&3
* 0.3 MHz to 2 MHz: 1.5 dB, 10 degrees
* 2 MHz to Fmax: 1.5 dB, 10 degrees
* Reflection Magnitude, Phase1&2&3
* 0.3 MHz to 2 MHz: 1.5 dB, 25 degrees
* Effective Source Match2&3 (test ports)
* All Others: 50 ohm Type-N (f)
* Size: 191 mm W x 62 mm H x 204 mm D
* (7.5 in x 2.44 in x 8.0 in)
* Net Weight: 1.7 kg (3.8 lb)
