Siemens circuit breakers 2-15 amp and 2-20 amp
Thermal Magnetic Circuit Breakers Products
Siemens Thermal Magnetic Breakers provide three primary functions: 1) on-off switching, 2) over-current protection, and 3) short-circuit protection. The over-current protection is provided by a thermal trip element within the breaker. The short-circuit protection is provided by a magnetic trip element within the breaker. For easy review of the common types of thermal magnetic breakers, the products are divided into four categories: Type QP, Type QT, Type QD and Main Breakers.
Siemens QP breakers provide easy plug-in connections in Siemens enclosures and the time saving Insta-Wire feature. Siemens offers three AIC ratings for these breakers: QP @ 10K AIC, QPH @ 22K AIC, and HQP @ 65 K AIC. There are also 4 available constructions to choose from:

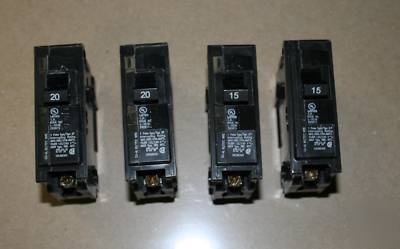

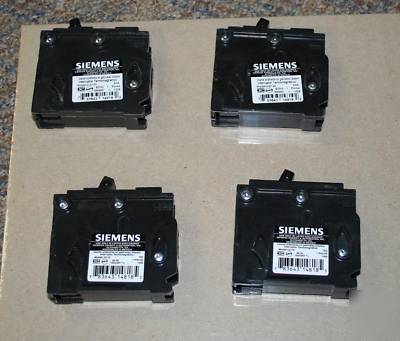

You get 2 15 amp and 2 20 amp breakers. These were taken straight out of a brand new Breaker panel during installation to make room for some double pole breakers. These were never used or hooked up.
