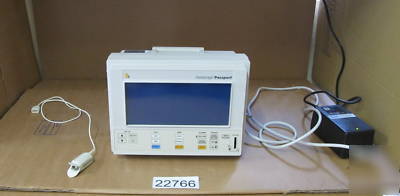

Datascope passport 5L patient monitor ecg heart rate ++
DATASCOPE PASSPORT 5L Specifications
13 lbs. Maximum without batteries
Power consumption: 15 watts typical. Voltage input: 100, 120, 220, 240 VAC 10%. Mains frequency: 47 to 65 Hz.
Leads: I, II, III, aVR, aVL, aVF, V. Display sensitivity: 0.25, 0.5, 1.0, 2.0, 3.0, 4.0 cm/mV 10%. Frequency response to screen: ESU filter out: 0.5 to 40 Hz, -3db max @ 1 mVpp input. ESU filter in: 0.5 to 20 Hz 3db max @ 1 mVpp input
Range: 30-300 bpm adult/child. 30-350 bpm neonatal. Accuracy: 30-250 bpm 3bpm or 3%, whichever is greater. Pacer rejection: rejects all pulses of amplitude 2.0 mV to 700 mV and duration 0.1 ms to 2 ms with no tail. Rejects all pulses 2.0 mV to 700 mV and duration 0.1 ms to 2 ms with 100ms T.C. tail <0.8 mV or 25 ms T.C. tail < 0.4 mV. Display update: 2 seconds 0.1 sec
Technique: oscillometric. Systolic range: adult/ped mode: 50 250 mmHg, neonate mode: 15-150 mmHg. Diastolic range: adult/ped mode: 30-200 mmHg, neonate mode: 10-150 mmHg. Systolic accuracy: mean error less than 7 mmHg, standard deviation less than 8 mmHg (adult/pediatric). Mean error less than 3 mmHg, standard deviation less than 13 mmHg (neonatal). Diastolic accuracy: mean error less than 7 mmHg, standard deviation less than 8 mmHg (adult/pediatric). Mean error less than 4 mmHg, standard deviation less than 7 mmHg (neonatal). Heart rate meter range: 30-250 bpm. Heart rate meter accuracy: 3 bpm or 3%, whichever is greater.
Accuracy (1standard deviation): 70-100%, 2%; 60-69%, 4%; 0-59%, unspecified. Response time: 13 seconds to 95% of final step change % SpO2 value from 60-95% at 72 bpm
Speed: 50, 25, 12.5, 6.25, 3.125 mm/sec 5%. Note: 6.25 and 3.125 are for respiration only. Chart size: 50 mm 2mm
FREE UK AND EUROPEAN DELIVERY22766
