40" w finish pro fp-4075CBW belt grinder, wet type line
40" W Finish Pro FP-4075CBW BELT GRINDER, Wet Type Line
40" Width Finish Pro FP-4075CBW BELT GRINDER, Wet Type Line Graining / Deburring / Finishing
New Finish Pro, 40" Wet Type Double Head -

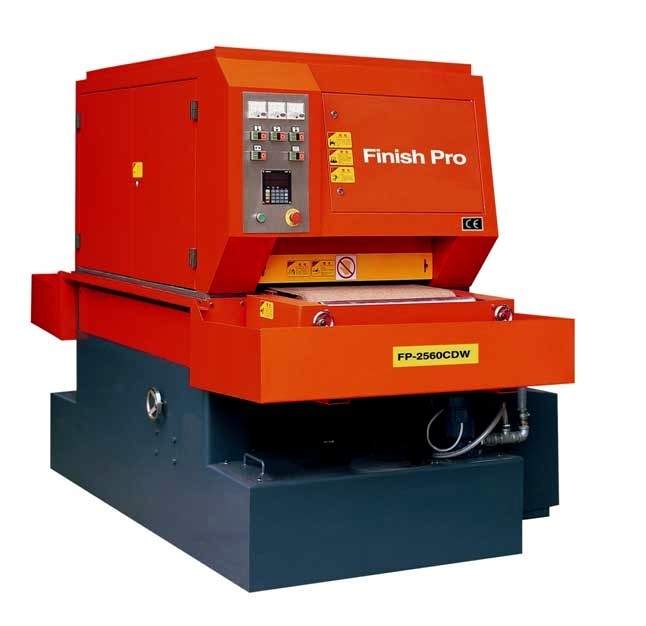

note: photo is of the smaller FP-2560CBW model
Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the
tracking system when running extremely out of parallel belts
Safety System with air operated disc brakes to stop sanding head
in 3-5 seconds, even in case of loss of air pressure.
Contact Roller Size: 8 Diameter
Conveyor Drive Speeds, inverter drive: 6-40 FPM
Belt head motor: 15 HP, 230V / 460 V, 3-ph h
Brush head Motor: 15 HP, 230V / 460V, 3-Ph
Conveyor Motor: 3 HP, 230V / 460V, 3-Ph
Coolant /filter Motor: 2 HP, 230V/ 460V, 3-Ph
Air dryer Motor: 4.5 HP , 230V/ 460V, 3-Ph
Machine Weight, approx: 6,150 LBS
Machine Dimensions, LxWxH: 78 x 116 x 76
Service Engineers for Start-Up and On-site Training
