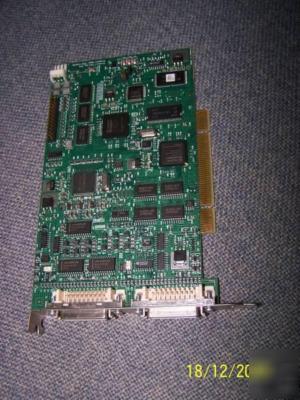

Coreco imaging pci PC2-vision frame grabber oc-PC20-V00
The PC2-Vision from Coreco Imaging is the latest in the PC-Vision series of frame grabbers. The PC2-Vision acquires from standard and non-standard monochrome and RGB analog sources. It can digitize up to 3 synchronized monochrome cameras. Simultaneous acquisitions are supported through frame delay mode allowing concurrent captures from all six inputs and each of the six camera inputs has its own VS, HS, frame reset and WEN signals. The PC2-Vision's hardware scatter-gather engine requires minimal CPU involvement as it automatically retrieves each descriptor (from host memory) representing the non-contiguous host buffer. The Parallel I/O controller offers eight input, eight output, strobe input and output signals (to latch 8-bit data into onboard registers) and a dedicated interrupt pin with programmable polarity.
* Supports up to 6 monochrome or 2 RGB analog cameras
* Dual-channel camera support
* Simultaneous acquisition from up to 3 synchronous monochrome or 1 RGB cameras
* Supports standard RS-170 and CCIR formats and non-standard formats
* Acquisition from interlaced and progressive scan cameras
* On-board hardware scatter-gather engine
* 40MHz digitization rates at 8-bit
* Supports asynchronous reset with pulses up to 60s in duration
* Each camera has its own vertical sync., horizontal sync., frame reset and WEN signals
* 8-bit monochrome, 32-bit RGB, 16-bit YUV with neutral chrominance
* PCI Transfer Up to 100MB/s sustained
* RS-232 serial port available on each MDR-36 connector
* MACHINE LOCATION IS SINGAPORE CAN GIVE TEST DRIVE FOR INTERESTED PERSONAL INSPECTION
