Lincoln electric invertec V350-pro factory K1728-6

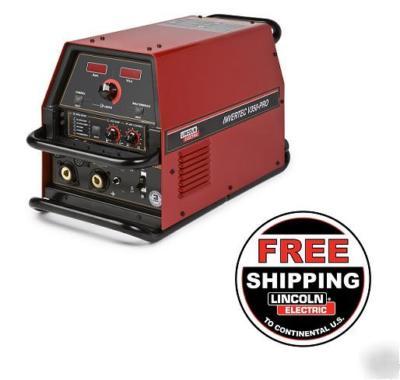

Lincoln Electric Invertec V350-PRO Factory Model
The Invertec V350-PRO is a versatile, multi-purpose, multi-process power source that s lightweight and portable. The V350-PRO is capable of doing virtually any job, whether in the shop or on the construction site. The V350-PRO is capable of stick, DC TIG, MIG, flux-cored and arc gouging, making it the most versatile inverter power source in its class. And it s built tough to handle the rigors of harsh environments. Great for construction, maintenance or shop welding.
All input voltages and frequencies are both single and three phase rated - no output derating necessary on single phase.
5-425 amp output range for all recommended processes from DC TIG to arc gouging.
Input voltage from 208-575 and 50 and 60 Hz operation - this one machine is capable of running on virtually any input power supply.
Touch-Start TIG for contamination-free starts.
Low power consumption for energy savings - 88% efficiency.
Parallel two units for 700A carbon arc gouging.
Includes Twist-Mate Cable Plugs (K852-70, quantity 2) for easy, tool-less cable connection.
Bright, large digital amp and volt meters are easy to monitor - even in sunlight - and presettable for precise procedure control.
Rugged skid and tube handles for convenience and added protection.
Three-year warranty on parts and labor. Two-year extended warranty available in the U.S.
Dimensions (in): 14.8 H x 13.3 W x 27.9 D
Processes: Stick, DC TIG, MIG, Flux-Cored, Gouging
Rated Output: CV: 350 Amps / 34 Volts / 60% Duty Cycle
CC: 350 Amps / 34 Volts / 60% Duty Cycle
