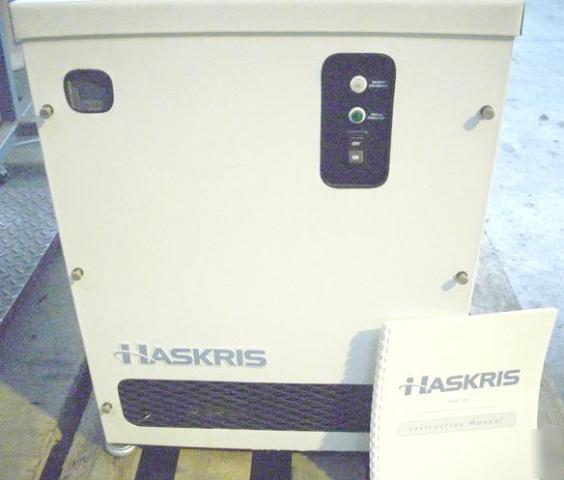

Haskris WW1 6000W 115V water recirculating chiller
HASKRIS WW1 6000W 115V WATER RECIRCULATING CHILLER
* Cooling capacity: up to 6,000 watts (20,460 Btu/hr)
* Recomended fuse size, TIme delay: 10 (amps)
* Water storage tank capacity: 5 (gallons)
* Water pressure bypass/relief valve setting: 45 (psi)
* High water temperature thermostat setting: 90/97 deg. F
* Supply and return connections: 2/8" FPT brass
* Cooling water connections: 1/2" FPT brass
* Design features (K), (L), (N)
* (K) Modifications for 10 PSI building water pressure differential, including a specail heat exchanger, mounted outside the water storage tank.
* (L) 5 Micron filter- This ooption consists of a removable housing and a replacement 5 micron cartridge. The cartridge filters supply water to the equipment being cooled
* (N) Two stage high water temperature alarm system
Product: 6000W 115V WATER RECIRCULATING SYSTEM CHILLER
