Cincinnati tray top 15 geared head engine lathe 15"X54"

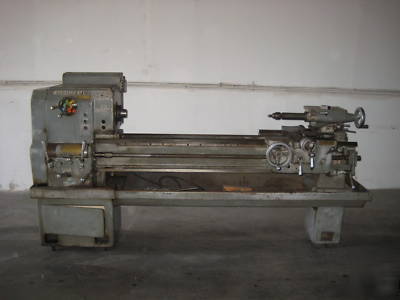

CINCINNATI TRAY TOP 15 GEARED HEAD ENGINE LATHE 15"x54"
THROUGH HOLE 1.5" SPEED 37 TO 1470
Actual swing over cross slide 9 1/2"
Maximum distance between centers 60"
Spindle speeds (12) 37 RPM to 1470 RPM
Spindle nose Threaded with locking collar
Inch and metric threading Inch Only
Spindle motor 5 HP/ 230V/460V/3PH/60CYC, presently operating on 230V
Overall Dimensions 108" L-R X 36" F-B X 48" High APPROXIMATE WEIGHT 3500 LBS
