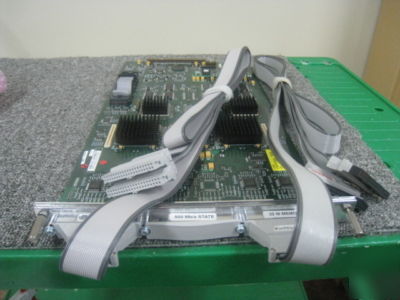

Hp/agilent 16911A 68-channel logic analysis module
HP/Agilent 16911A 68-Channel 4 GHz Timing/250 MHz State Logic Analysis Module
1. Timing Analysis (Asynchronous Sampling)
4 GHz (250 ps) timing zoom with 64 K memory
1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory
2. State Analysis (Synchronous Sampling)
State clock rates up to 450 MHz
Automated threshold/sample position setup for accurate measurements on high-speed buses
Simultaneous eye diagrams on all channels identify problem signals quickly
3. Configuration Considerations
68-channels per module, combine up to 5 modules for 340 channels
Selectable memory depths: 1 M, 4 M, 16 M, 32 M

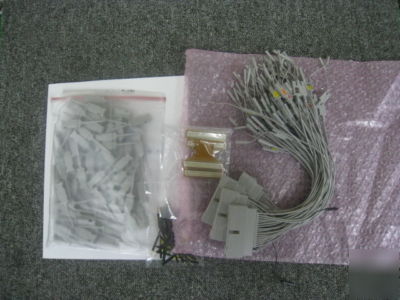

Compatible with 40-pin logic analyzer probes. Probes are ordered separately
Compatible with 16900 Series modular logic analyzers Additional Capabilities
Comprehensive single-ended signal support, threshold is adjustable from -5 V to 5 V (10 mV increments)
032 Increase acquisition memory depth to 32 M
