New jet 10-20 plus bench top drum sander 628900

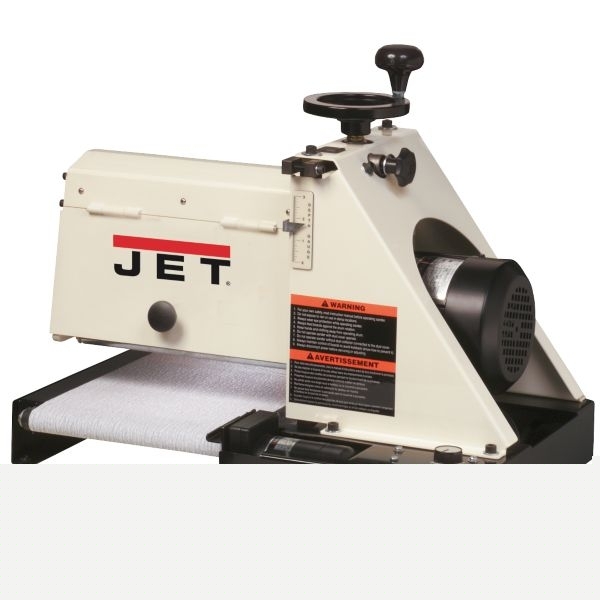

JET 10-20 Plus, 10-20 Plus Bench Top Drum Sander
* Infinitely variable-speed control produces the ultimate finish at a rate from 0 to 12 feet per minute and prevents machine overload
* Patented conveyor belt TRACKERS dramatically reduce the need for manual belt adjustment
* Precision-machined and balanced extruded aluminum drum is self-cooling to protect the surface being sanded from heat-damage
* Sealed and permanently lubricated drum ball bearings for longer life
* Precision-flattened reinforced steel conveyor bed and no-give power feed belt provide a constant smooth sanding action for better results
* Adjustable drum height and downward pressure feature virtually eliminates snipe
* Cast-iron hand wheel adjusts height at 1/16" per turn for precise sanding thickness control
* Patented abrasive take-up fasteners make changing abrasives quick and easy
* 1 HP motor is totally enclosed to prevent dust and debris from getting into the housing
* On/off switch with overload protection is front-mounted for operator's convenience
Motor 1 HP; 1 Ph 115V Drum Speed 1,700 RPM Drum Dimensions 5" x 10" Minimum Sanding Length 2-1/4" Maximum Sanding Thickness 3" Minimum Sanding Thickness 1/32" Maximum Sanding Width 20" (2 passes) Dust Port Diameter 4" Conveyor Motor Direct Drive 43 in.-lbs. of Torque Conveyor Variable Feed Rate 0 - 12 FPM Net Weight 74 lbs.
* 10-20 Plus Bench Top Drum Sander - 628900
