Rdgtools 100MM tilting rotary table with myford mount
4" / 100MM ROTARY TABLE WITH MYFORD ADAPTOR
HERE WE OUR STANDARD 100MM TILTING TABLE BUT WITH A MYFORD ADAPTOR
THIS ALLOWS MYFORD OWNERS TO MOUNT THERE OWN CHUCK OR FACE PLATE
ADAPTOR CAN BE ALSO USED ON VERTICAL SLIDE TO AGAIN MOUNT CHUCKS
ADAPTOR IS REMOVABLE WHEN NOT IN USE
ALL BOLTS AND TEE NUTS SUPPLIED
THE TABLE TILTS UP TO 90 DEGREES AND CAN BE USED ANYWERE ALONG THE SCALE
BASE IS 145MM X 126MM WITH TWO 10MM MOUNTING HOLES SEPERATED BY 110MM,
STANDS 66MM TALL (IN FLAT POSITION),
TABLE DIAMETER 100MM, WEIGHT 4.9KG. TABLE IS GRADUATED 0-360 DEGREES IN 5 DEGREE DIVISIONS,
WINDING HANDLE IS GRADUATED 0-10 DEGREES IN 5 MINUTE DIVISIONS,
TABLE SURFACE HAS FOUR RADIAL T-SLOTS 5/16" WIDE,
UNIT WELL SUITED FOR MODEL ENGINEERING APPLICATIONS,
SMALL ENOUGH TO BE MOUNTED ON SMALL MILLS OR ON A LATHE VERTICAL SLIDE OR CROSS SLIDE.

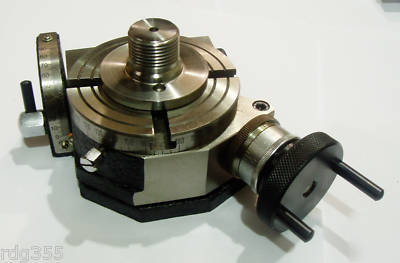

ABOVE TABLE FITTED WITH YOUR MYFORD CHUCK
THE ABOVE IS SET AT 45% AND IS FITTED WITH A 3 JAW CHUCK
THIS PICTURE IS FOR ADVISE ONLY , AND SALE DOES NOT INCLUDE CHUCK
