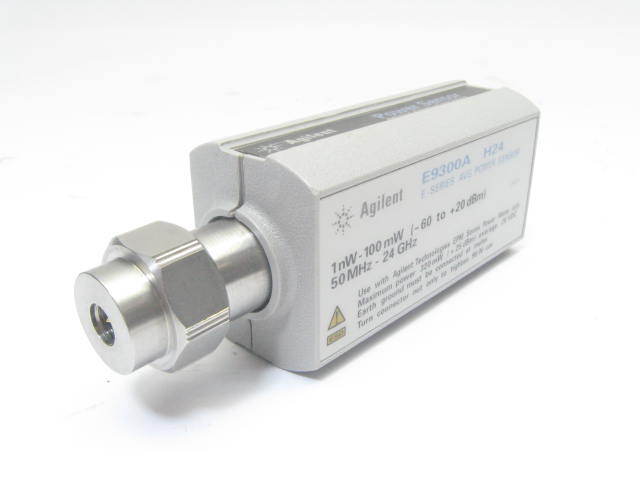

Agilent hp E9300A opt/ H24 avg power sensor
The Agilent E9300A Avergae Power Sensors measure RF and Microwave signals regardless of modulation format. These power sensors measure complex digital modulation formats including those used in today's wireless communication, satellite and cable TV systems; at both low and high power levels. The same power sensor can also be used to measure multi-tone and continuous wave (CW) signals.
* Wide dynamic range (-60 dBm to +20 dBm) and frequency range 10 MHz to 18 GHz
* High maximum power specification
* Fast measurement speeds (up to 400 readings per second with the E4416A)
* Compatible with EPM, EPM-P and P-series power meters
* OPT H24 : 3.5mm (M) Connector
