> Pos nu touchscrn systm w/ swipr & pole display loaded

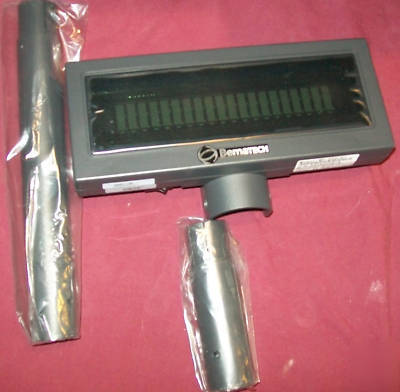

Pos nu touchscrn systm w/ swipr & pole display loaded
Re-listed with lower reserve price!

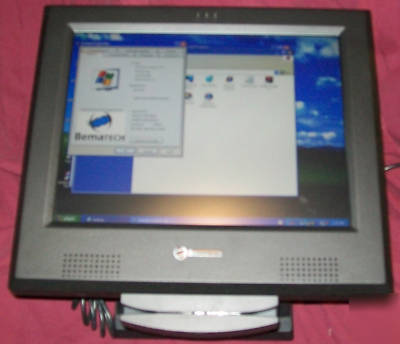

Bematech SB-9010 15" Touchscreen POS PC
* Never put into use, still in original box

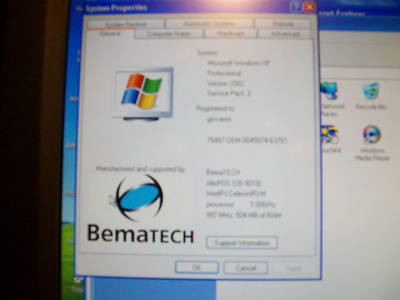

* Windows XP Pro loaded w/ SP3 & COA
* All drivers loaded - ready for your POS software
* http:// /en/products/prod_pos_sb9010.asp
SB-9010 delivers the perfect blend of Quality, Performance, Durability, and Economy making it the Best-in-Class for All-in-One Touch Screen Computers. The SB-9010 utilizes an industrial Fanless CPU, Die-Cast Aluminum Housing, and Low Profile All-In-One Solution. Two thumb-screws on the back panel of the LCD allow for easy access for service and maintenance.
Attractive and robust design that offers high stability at the touch of the screen.
Support to a wide range of Operational Systems.
Wireless LAN support allows for connectivity without cables.
Flexible Configurations.
CPU: Intel Ultra Low Voltage Celeron M 1GHz w/o L2 cache
Core Logic: Intel 852GM + ICH4.
System Memory: SO-DIMM DDR266/333, 128MB up to 1GB.
OS Support: Win XP, WEPOS.
Touch Screen: 5- wire Resistive Type.
HDD: 1 x IDE 2.5 HDD Driver Bay.
Compact Flash: 1 x Slot Compact Flash Type II.

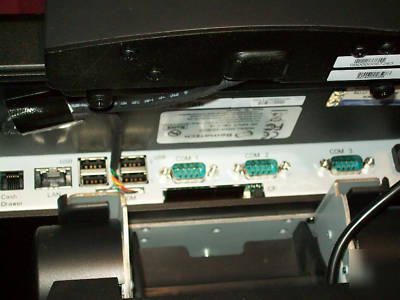

Serial: 5 x RS-232, 1x RS-232/422/485. COM1: RS-232/422/485, DB-9,Pin with RI/5V/12V Selected by BIOS. COM2/3/4: DB-9, RS-232, Pin9 with RI/5V/12V Selected by BIOS. COM5: Internal for MSR. COM6: Internal for Touch Panel.
PS/2: 1 x Internal for MSR, IButton.
LAN: 1 x Gigabit Ethernet by RJ-45.
Cash Drawer: 1 x RJ-11 (12V DC).
Speaker: AC` 97 2.0 Compliant wth 2W speakers *2.
Power Input: 150W AC Power Adapter, 19VDC Input.
USB Power Backup: Supports smart battery. 4P1S for backup (OPTIONAL).
Material: Die-Casting Aluminium.
EMC & Safety Compliace: FCC / CE.
Dimension (mm) LxWxH: 390 x 229 x 412.
Operating Temperature: 5 C - 40 C.
Storage Humidity: 20% - 85% RH, non-condensing.
